Immersion Uno5800 v4.1 5.8GHz A/V Receiver Race Edition

Out of stock / Not Available
SKU
immunov4
€73.14 €59.95
.

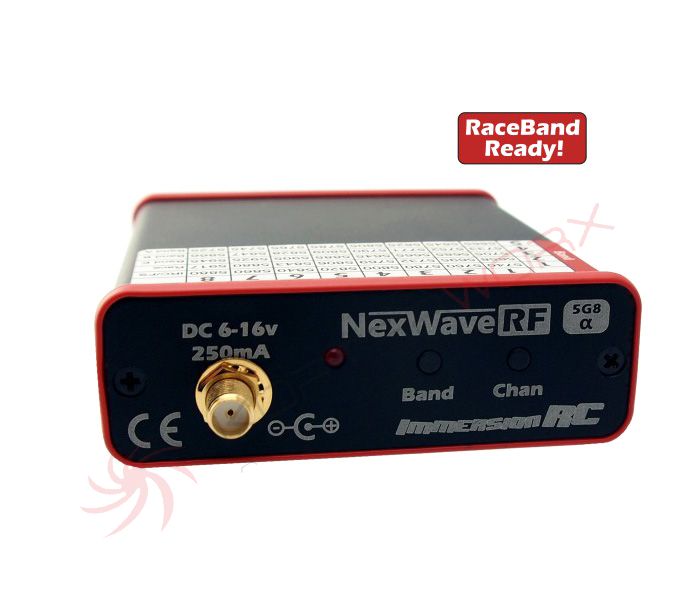

ImmersionRC Uno5800 5.8GHz Receiver Race Edition

- >-90dBm typical sensitivity, NexWaveRF module technology

- Standard Frequencies :
    IRC/FatShark: 5740, 5760, 5780, 5800, 5820, 5840, 5860 (all within the legal ISM band)
    IRC RaceBand: 5685, 5695, 5732, 5769, 5806, 5843, 5880, 5917 MHz (legal for Ham use in USA)

- Extra frequencies :

    E Band: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
    B Band: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
    A Band: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725

- Race Band will allow race band channels availble in the Vortex. This band falls within the legal US ham band, and can be sold domestically.

- Triple buffered A/V outputs (one combined with the groundstation connector)

- Single Cable Groundstation Connection (Power, Audio, Video, Control/Data)

- 6-16V DC supply voltage (2.1mm plug, center pin positive)

- High Bandwidth Stereo Audio

- Ships with 3dBi 5.8GHz SMA male omnidirectional antenna

- Single A/V and power cable supplied in the box
