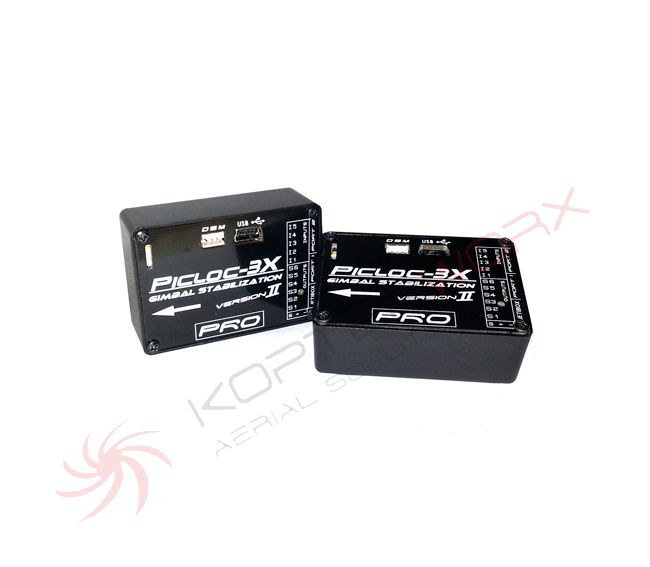

Picloc-3X PRO v2

Picloc-3X PRO

• 6 servo Outputs ( Refresh rates from 50Hz to 400Hz TurboPWM) - Camera control channels can be output by Picloc over the spare servo outputs
• 3 types of R/C input control (5x individual r/c channels; 1x PPM_SUM; 1x Spektrum Satellite receiver - compatible with all Spektrum radios)
• 3x Mems Gyros, 3x Mems Accelerometer, ARM CPU 32 bit processing
• JetiBox port for direct field programming/tuning - can even be done in real time wirelessly over a JetiDuplex telemtery link
• AutoPanorama mode for full 360 automatic shooting

• 3x Magnetometer for no drift also in Pan axis
• Internal Flash memory for logging of accurate camera angles and position - (eg CGI integration, or GeoMapping)
• GPS Port - With this we can log GeoPosition, point the camera to a specific target which is either moving (transmitting its GPS position over telemetry) or stationary
• Telemetry Port

More info on: http://rotorpics.com/?page_id=17
