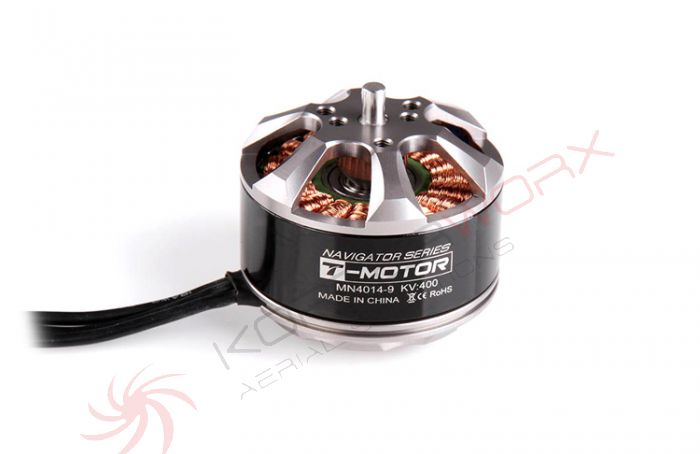

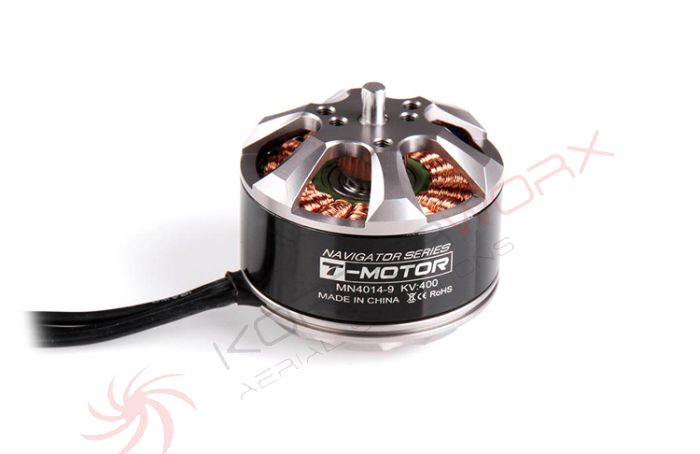

T-motor MN4014 400kv
.
Specifications for MN5212 motor
KV................................................................................................................400
Configu ration...................................................................................18N24P
Stator Diameter...................................................................................40mm
Stator Length.......................................................................................14mm
Shaft Diameter.......................................................................................4mm
Motor Dimensions(Dia.*Len)...........................................Φ44.7×34.5mm
Weight (g)................................................................................................150g
ldle current(10)@10v(A).........................................................................1.3A
No.of Cells(Lipo)....................................................................................4-8S
Max Continuous current(A)180S...........................................................30A
Max Continuous Power(W)180S.......................................................900W
Max. efficiency current.............................................................(3-12A)>81%
internal resistance...............................................................................67mΩ
