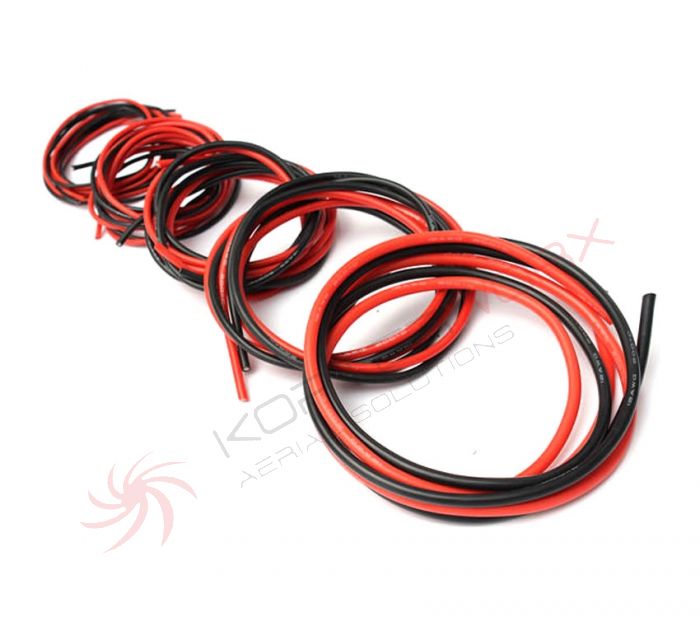

12 AWG Super Flexible Silicone Cable RED

High quality flexible silicone insulated electrical wire cable with tinned copper conductor

• 600v operating voltage
• Working temperature between -60 and 200 degrees
• Gauges: 10, 12, 14, 16, 18, 20
• Colours: Red, Black

10 AWG - Max current: 140A. Conductor Area: 5.3 mm. Stranding: #1650/0.08 mm
12 AWG - Max current: 90A. Conductor Area: 3.4 mm. Stranding: #990/0.08 mm
14 AWG - Max current: 60A. Conductor Area: 2.07 mm. Stranding: #680/0.08 mm
16 AWG - Max current: 35A. Conductor Area: 1.27 mm. Stranding: #452/0.08 mm
18 AWG - Max current: 20A. Conductor Area: 0.75 mm. Stranding: #260/0.08 mm
20 AWG - Max current: 12A. Conductor Area: 0.5 mm. Stranding: #185/0.08 mm

Delivery
1m
