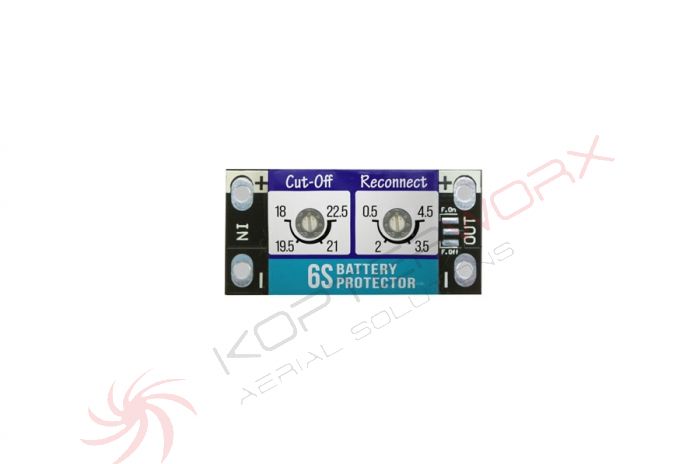

15A 6S - LiPO Battery Protector / Low Voltage Cut-off

Low voltage cut-off module for batteries.

Adjustable threshold levels for cut-off and reconnect.

Remote pins for manual override.

Can be used as DC SSR relay.

To protect batteries from over discharge and/or short circuit and overload.

Specifications:

1. Input voltage range: 6..32V
2. Continuous current: max 15A
3. Self consumption OFF/ON: 0.15mA/3.3mA
4. Dimensions: 20 x 42 x 9 mm (0.79 x 1.65 x 0.35 inch)
5. Wide 2 mm in diameter soldering terminals - you can solder any type of connector you wish.

Main Features:

1. Adjustable threshold levels for Cut-Off and Reconnect.
2. Auto ON on power cycle - no need to reach reconnect value to get ON after power apply.
3. Remote ON/OFF pins to override switch state.
4. Solid state switch (single n-ch MOSFET on positive side)
5. Solid, epoxy sealed PCB.

Safety:

1. True short circuit protection: YES
2. Over-current protection: YES
3. Reverse voltage protection: YES
4. Oscillation free operation: YES (1-2 secs delay in low voltage detection)
