7" LCD Ultra Slim Hires IPS HD LCD HDMI
Perfect solution for camera operator on DJI Inspire 1 or field monitor for Ronin, Lightbridge, Connex, ...
Description
This FW759 HD Minitor utilizes advanced IPS screen, with up to 7inches monitor allows you
to get the vivid and clear visual experience. Specific Slim Design 17mm wide view angle IPS 1280x800
Ultra HD Monitor for Steadycam,DSLR Rig,Camcorder Kit,Handheld Stabilizer,Video Camera Crane ,seizing
much more clear world. The high resolution LCD,1:1 pixel mapping and 800:1 contrast ratio provides users with
the most accurate picture of FEELWORLD monitors. Professional Peaking Focus Assist Application for full HD
Vedio Camera in taking photos and Making Movies.
Kindly reminder:
1. It works well with BMPCC, but you need to buy a Micro HDMI cable separately for connection.
2. The image on screen would turn into black and white if the peaking focus assist is applied
3. When this monitor displays in full screen, the image would exceed the bounds to prevent distortion.
Features:
* Wide view angle IPS panel,Ultra HD1280x800 resolution
* The enhanced 400cd/m2 backlight and 800:1 color contrast ratio
* Slim design 17mm Portable Light compatible for Steadycam,DSLR Rig,Camcorder Kit,Handheld Stabilizer,Video Camera Crane
* Peaking Focus Assist
* Camera 5D II Mode
* Check Field:(Red,Green,Blue,Mono)
* Image Flip(U/D,L/R)
* ScreenMarker (80%,85%,90%,93%,96%,2.35:1)
* Centre Marker
* 4:3&16:9 image adjustable
* Pixel-to-Pixel
* Image Freeze
Specification:
| Model | FW759 |
| Resolution | 1280x800 |
| Dot pitch | 0.11775(H) x 0.11775(V) |
| Aspect ratio | 16:10 |
| Brightness | 400cd/m² |
| Contrast | 800:1 |
| Backlight | LED |
| Response time | 25ms |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
| Inputs | Video,Audio,HDMI |
| Outputs | Wire remote OSD controller,Built-in Speaker, 3.5mm Audio |
| HDMI Support Mode | 480i / 576i / 480p/576p |
| 1080i (60/59.94/50） | |
| 720p (60/59.94/50/30/29/25/24/23.98） | |
| 1080p（60/59.94/5030/29.97/25/24/24fps/23.98/ 23.98fps） |
|
| Power Consumption | 5w |
| Input Voltage | 7.4V~35V |
| working Temperature | –20～50℃ |
| storage Temperature | –30～60℃ |
| Install Way | 1/4"-20 Thread Socket(1 bottom side) |
| Unit Size | 176Lx130Wx17H(mm) |
| Unit Weight | 0.4kg |
Package contents:
1x FW759 Monitor
1x HDMI Cable
1x HDMI Cable Lock
1x Battery Mount
1x User Manual

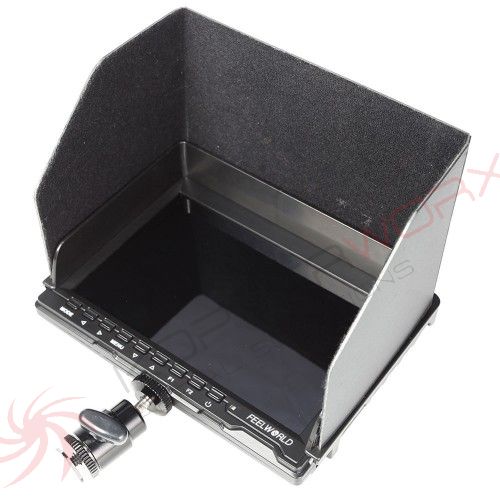

1x Sunshade
