7'' TFT LCD FPV Monitor 5.8G 40CH Build-in Battery

Description:

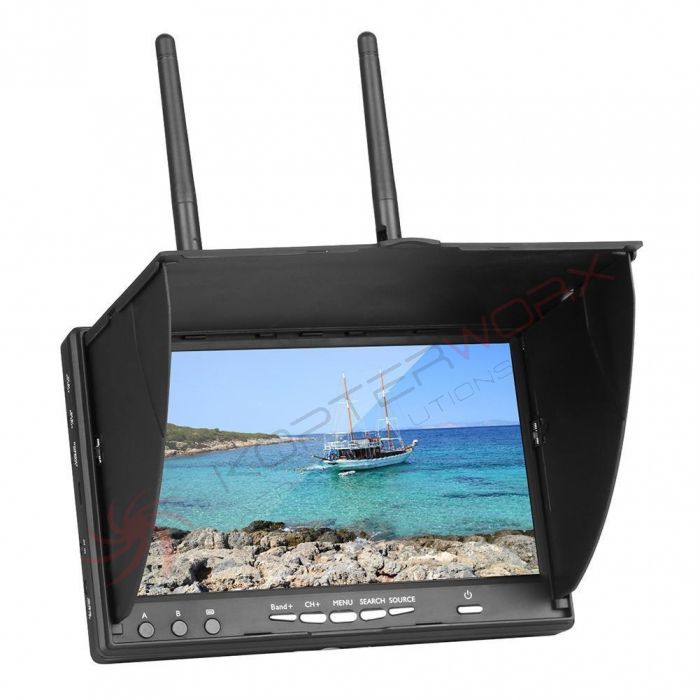

7 Inch TFT LCD Screen FPV Monitor LT5802S 5.8G 40CH LED Backlight Multicopter with Build-in Battery
Feature:
1. Battery operation state OSD display: RSSI signal; index; channel indication.
2. Automatic signal search.
3. Support Chinese and English menus.
4. Format: JPEG, AVI.
5. Built-in dual receiver module.
6. Double buffered AV output.
7. No impact on 2.4 GHz R / C radio.
8. AV receiver with diversity input.
9. Light weight and durable.
10. 40 channel.
11. Built-in batteries for easy to carry and outdoor use.
12. Automatic signal search, simple operation.
13. Working status display: always pay attention to the working state of the equipment.

Specification:
Built-in 5.8 GHz dual diversity receiver
Built-in 2 CH 5.8 GHz AV output and 1 ch AV input
Built in high performance Li-POLYMER batteries: 2000 MAH / 7.4 V
Screen size: 7 inches
Screen type: TFT LCD screen / long life, LED backlight
Resolution: 800 * 480
Brightness: 600 CD / m2
Perspective: 140/120degree (horizontal / vertical)
Working voltage: DC 7 ~ 16 V
Power consumption: Max 650 mA @12V
Battery charging current: 850 mA @12V (max)
Working temperature: -10℃~ + 65℃
Connector: RP-SMA (external needle)
Antenna connector: RP-SMA (inner hole)
Size: 175*117*30mm/6.88*4.6*1.18''

Note: It can't receive two different channels at the same time.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand.
Included:
1 x FPV Monitor
2 x Antennas
1 x Power Adapter
1 x Video Cable
1 x Charging Connector Cable
1 x User Manual
