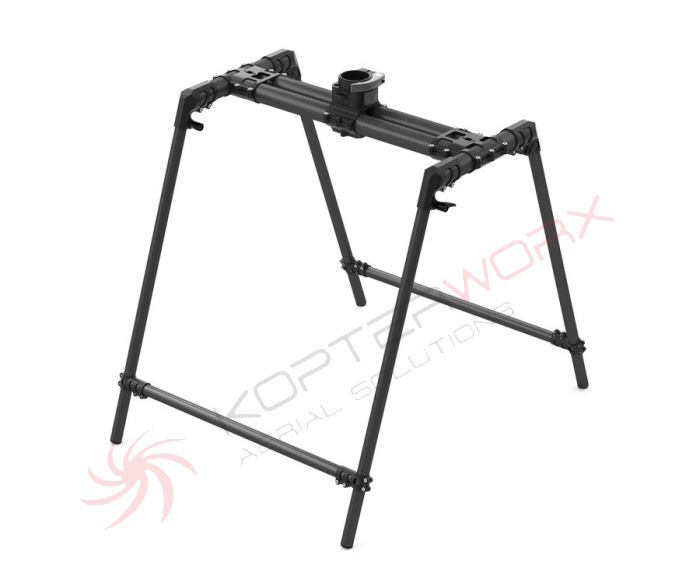

Alta X Cargo Landing Gear
Freefly Cargo Landing Gear provides Alta users with an expandable and adaptable platform to help speed the integration of their custom payloads.
The Cargo Landing Gear can be used for package delivery, LiDAR setups, logging, LED lights, medical delivery, and just about anything in between.
The system uses a modular clamping design based on 25mm and 15mm tubes that allows the user to customize the system quickly and easily. By purchasing shorter or longer 25mm or 15mm tubes users can make the gear fit their use case.
The system includes the heavy duty version of the Toad in the Hole Quick Release (4mm fasteners) along with a variety of M3 and M4 hard mounting points on the main mount. The main landing gear quick releases for easy pack down at the end of your mission.
Accessory clamps, tubes, and a cargo tray are available to further optimize the cargo landing gear.
Features
- Toad in the Hole Quick Release (M4) included (for attachment to Alta)
- M3 and M4 mount points for payload (mounting pattern here)
- Pop-n-lock Mount points
- 25mm tube main structure, 15mm tube leg and crossbar structure
- Weight in flight: 3.35lbs/1.52kg
In the box:
- Qty 4 - 450mm 15mm landing gear legs
- Qty 2 - 350mm 25mm crossbars with Toad in the Hole mounting bracket and 25mm end crossbar brackets
- Qty 2 - 180mm 25mm end crossbars
- Qty 2 - 365mm 15mm strut supports with 15mm attachment brackets
- Qty 1 - Toad in the Hole Quick Release (M4)
- Qty 4 - 25mm to 15mm Aluminum Leg brackets
