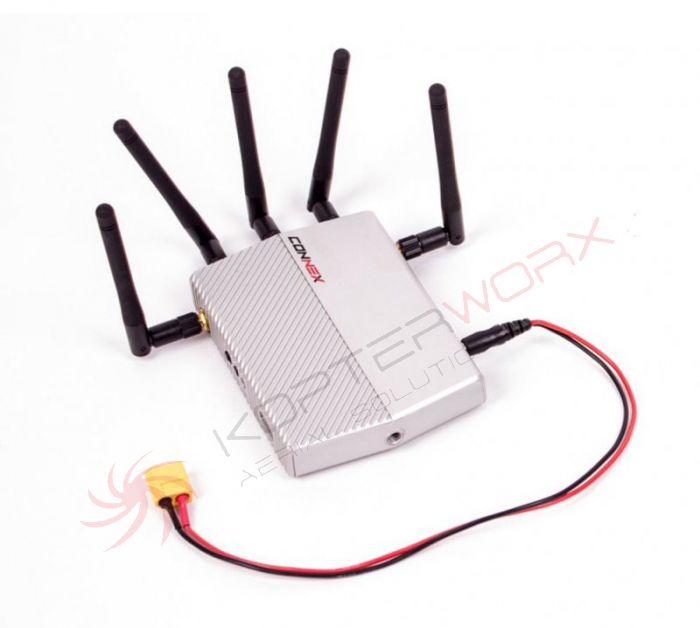

Amimon Connex - Fusion Ground unit (RX)

Last one!
SKU
AMN0914MS-02
€1,573.80 €1,290.00
.

Amimon's CONNEX provides a high-end, high-performance wireless HD connection that can operate in challenging unmanned air or ground platforms under harsh conditions with zero latency!

Fusion Upgrade

Amimon Connex Fusion allows the UAV operator a much more flexible choice between size and weight to multisystem enviroment.
You can connect the Connex Fusion Mini Transmitter to the Connex Fusion Receiver and keep up the range of 1km.
This is done without compromising on range and performance on any Transmitter that the user may decide to use.

With Mini or Normal TX you can use up to 4x ground unit.

Key Features:
True full HD 1080P at 60fps
Up to several 100 meters range (LOS)
Zero latency, real-time video
Extremely resilient 5GHz digital link
Automatic Frequency Selection (AFS) that fully complies with regulations and automatically selects the best free frequency available
Encrypted and secure
Sturdy design for harsh conditions
Built-in OSD view with embedded MAVLInk-based telemetry
Gimbal control over Futaba® S.BUS
Plug-and-Fly, ready to operate out of the box
DFS support enables multiple free channels, thus boosting robustness

Ground Unit:
The Ground Unit connects to various types of monitors, video goggles or a portable video monitor via the HDMI port. This enables the pilot and/or camera operator to monitor the video transmitted from the Air Unit.

Pilot:
The pilot can view the video on a monitor or wear video goggles connected to the Ground Unit. Flight control (telemetry) information from the aircraft is overlaid on the video. The pilot uses a remote flight controller to control the aircraft.

Camera Operator:
The camera operator can hold a portable or PC video monitor on which the video can be viewed. The camera operator can use a gimbal remote control to control the aircraft camera?s gimbal through the S.BUS port of the Air Unit.

In the Box:
Ground Unit (Receiver)
Antennas and cables (Ground Unit)
