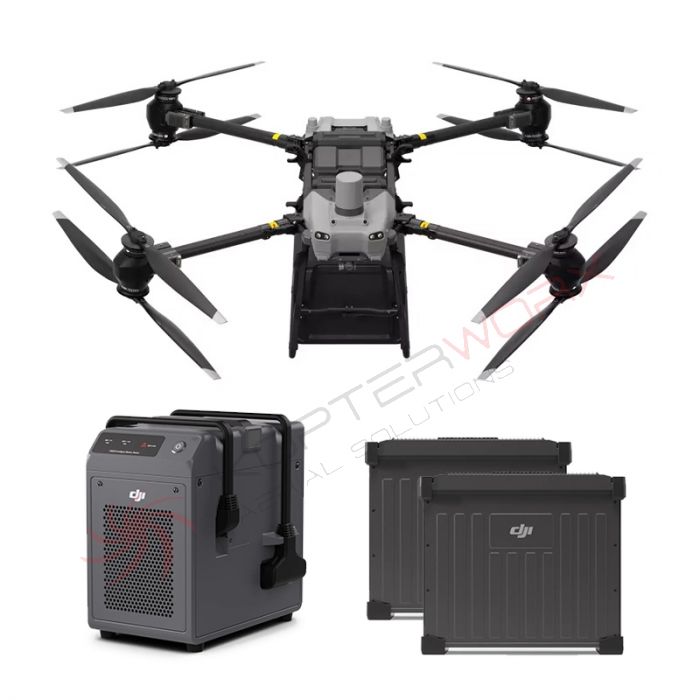

DJI FlyCart 30 Bundle

DJI FlyCart 30 Combo - Heavy payloads, long range

One of the main applications of the DJI FlyCart 30 is the transportation of goods. The DJI FlyCart 30 is a powerful long-distance transport drone that features signal strength and intelligence. It supports cargo mode and winch mode, breaking the traditional logistics boundaries to provide a safe, economical and efficient air transportation solution.

• Maximum payload of 30 kg
• Flight distance without payload of 28 km
• Flight distance with full payload of 16 km
• Maximum speed of 20 m/s
  The first three figures refer to operation with two batteries.

Built for extreme conditions

• Max. flight altitude of 6,000 m
• Operating temperature -20 °C to 45 °C
• Wind speed resistance 12 m/s

Strong signal

• Video transmission with O3 from 20 km
• Dual operating mode
• High resolution FPV gimbal camera

Advanced security and intelligent features

• IP55 protection and corrosion resistance
• Dual radar, dual binocular vision, intelligent obstacle detection
• Dual batteries and parachute

Practical configurations

• Foldable
• EPP case with 70 l capacity
• Winch system

Fully automatic operation

• DJI ‎Pilot ‎2
• DJI Delivery Hub
• Health Management System

Designed for delivery
Delivering goods that are needed, where they are needed.
High payload capacity and long flight distance overcome logistical constraints for next-generation delivery.

• 30 kg maximum payload (two batteries)
• 40 kg Maximum payload (one battery)
• 28 km maximum flight distance without payload (two batteries)
• 16 km maximum flight distance with full payload (two batteries)
• 20 m/sMaximum flight speed (with carbon fiber propellers)
• 15 m/s cruising speed

All-weather performance
Withstands 24/7 operation at extreme altitudes and in extreme weather conditions.

• 6000 m Max. flight altitude
• -20 °C to 45 °C operating temperature
• IP55 protection class
• 12 m/s Maximum wind speed resistance

Safety and reliability in delivery
Guaranteed safety from take-off to landing.

Settings for alternate landing sites
Several alternate landing sites can be set for a safe landing in an emergency.

Protection during take-off and landing
Several functions ensure safe take-off and landing, including acoustic and visual warning signals, a 6-second delay in propeller rotation and a second confirmation of landing. An optionally integrated RTK module enables centimeter-accurate positioning to further increase safety during take-off and landing.

Integrated Parachute
An integrated parachute can open at low altitude and land the drone stably in an emergency. The parachute has its own self-test at takeoff, independent power supply, sound and light warnings, and the propellers stop rotating before opening.

Intelligent Obstacle Detection
The DJI FlyCart 30 is equipped with front and rear omnidirectional phased array radar and a dual binocular vision system to enable intelligent, multi-directional obstacle detection. A built-in ADS-B signal receiver detects and warns of nearby manned aircraft.

Multi-layer redundancy
The DJI FlyCart 30 features a high level of redundancy to ensure flight safety even in difficult environments. If the drone is operated with a dual battery system and one battery fails during flight, the other battery keeps the drone in the air and ensures a safe return.

Stable video transmission over long distances
The DJI FlyCart 30 supports DJI O3 video transmission over a distance of up to 20 km. The four-antenna transceiver system intelligently selects the optimal antenna for signal transmission and improves anti-interference capabilities.

Effortless Control
The DJI RC Plus features a 7-inch screen with high brightness and supports dual-operator mode[9]. In this mode, two operators can conveniently exchange control privileges with each other to meet different operating needs.

Built for tough environments

• IP54 certified / waterproof and dustproof
• -20 °C to 50 °C / Can be used in hot and cold environments

Stable transmission and long battery life

O3 video transmission with four antennas with a range of 20 km
Intelligently selects the optimal antenna for signal transmission to ensure more stable video transmission.

Enhanced 4G Video Transmission
The remote controller can connect to a Wi-Fi network or connect to a cellular network using DJI's Enhanced Video Transmission Module to enable enhanced 4G video transmission.

6-hour battery life
Internal and external batteries power the controller for 6 hours and enable hot-swapping for seamless, uninterrupted flight.

Selecting the payload configuration
Cargo mode or winch mode facilitates payload delivery depending on the destination.

Cargo mode: optimized and stable

• Max. capacity of 70 l
• Maximum payload (two batteries) of 30 kg
• Maximum payload (one battery) of 40 kg

The DJI FlyCart 30 comes standard with an EPP tray that allows for easy loading and unloading.
Weight and center of gravity detection ensures balanced loading for safe and stable flight.

Winch mode: Flexible and precise

• Maximum payload (two batteries) of 30 kg
• Maximum payload (one battery) of 40 kg
• Maximum trigger speed 0.8 m/s
• Maximum release length 20 m

*The winch system kit is sold separately

The load carried by the winch is conveyed via a downward cable that can be controlled either manually or automatically. The load is automatically released when it is placed on the winch and does not need to be released manually, ensuring safe and precise delivery.

The DJI FlyCart 30 can intelligently adjust its position to minimize swaying of the cargo and improve stability. In extreme situations where the hanging cargo becomes caught or tangled, you have the option to heat and cut the winch cable to free the drone.

A one-stop solution for simplified drone delivery
The DJI Pilot 2 and DJI DeliveryHub offer a powerful, efficient and flexible one-stop solution for managing drone delivery.

Simplified delivery
DJI Pilot 2 displays flight status, cargo status and other interactive features in real time for efficient and safe operations with DJI FlyCart 30.

Real-time flight safety alerts
Battery level, power status and mileage are displayed in real time, and the accessibility of the target point is monitored to ensure operational safety.
In extreme weather conditions or other anomalies, DJI Pilot 2 warns of risks and helps manage alternative landing sites.

Intelligent support for increased efficiency

Cargo Status
The DJI Pilot 2 can visually display cargo status and intelligently control the winch system for efficient delivery.

Cruise control
During long-distance and steady flights, cruise control can help reduce pilot fatigue.

Real-time terrain tracking
The elevation profile shows you terrain changes and surroundings in real time.

AR projection
The AR projection supports the pilot in landing precisely and dropping off the cargo.

Route recording
Flight routes can be recorded and automatically re-flown.

Collaboration across multiple terminals
DJI DeliveryHub is a centralized platform for managing aerial delivery, enabling efficient mission planning, comprehensive mission status monitoring, centralized management of team resources, and data collection and analysis.

Task planning and execution
Tasks and devices can be created, scheduled and assigned remotely. Safety check and takeoff can be confirmed with just one tap. Increase efficiency and automatically execute planned delivery tasks based on recorded flight routes.

Comprehensive status monitoring
The status of drones and tasks is monitored via a 2.5D basemap.
A live view directly from the drone's high-resolution FPV gimbal camera shows the flight environment.
If anomalies occur, alerts are issued and the pilot can intervene manually to ensure flight safety. Collaboration with teammates is possible by displaying status messages on multiple terminals.

Centralized resource management for teams
Complex flight routes can be planned quickly based on a 2.5D base map.
Marked locations and alternative landing spots can be managed for efficient team collaboration and coordination. Monitor drone health, maintenance information and DJI Care status.
Statistical data on drone, route and time can be displayed to evaluate efficiency and optimize future operations.
