XOAR Inspire 2 Self tightening mounts + High precision Carbon props
Xoar solution for Inspire 2, more power, less vobrations, carbon fibre high precision props, no more problems !!
XOAR DJI Inspire 2 Carbon Fiber Precision Pairs with Aluminum Self Tightening Adapters, made of Premium Quality 3K Carbon Fiber Fabric and unique blade design. It is light weight, strong, good endurance and rigidity, the perfect enhancement for your DJI Inspire 2 for every professional applications such as Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Traffic Monitoring & more.
DESIGN
Genuine Xoar Props Specially designed and created for DJI Inspire 2.
PREMIUM MATERIAL
These CF props are made of premium 3K Carbon Fiber fabric and proprietary resin system that offer ultralight weight to maximize efficiency and torque for Aerial Applications. XOAR Propellers are the perfect upgrade for your DJI Inspire 2 for Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Traffic Monitoring & more.
ADVANCED DESIGN AND CRAFTSMANSHIP
XOAR PJP-T-L Carbon Fiber Precision Pair Quadcopter Propellers are designed and engineered with unique blade shape and thin hub. The pairs have the same pitch and same weight for accurate, responsive and stable performance. The maximum tolerance of weight difference for each pair is 0.5 gram; this ensure consistent performance - same torque is produced by the motors on each pair of opposite arms - for your DJI Inspire 2.
PERFORMANCE
XOAR's Carbon Fiber Quadcopter Propeller for DJI Inspire 2 are constructed to offer maximum strength and endurance by it's unique structural design. The superior strength reduces flexing of the tips in Drone flight which greatly lower noise and vibration to yield a stable, responsive, smooth, accurate and quieter flight compare to the stock DJI Props.
SELF TIGHTENING ADAPTER
Xoar Self-Tightening adapters are made with high quality aluminum. Tested for holding the props securely. The adapters come with 2 sets of side holes - 12mm and 13mm between the center of the 2 side holes in order to support both DJI and other motors mounting pattern, such as T-motor, KDE motors. It is recommended to apply threadlocker on the adapters to hold the props in more securely. Please note, it is optional to install the props using the adapters. The propellers can be mounted directly on the motors.
- These XOAR Props can be mounted using the XOAR Self-Tightening Adapters or directly on DJI Inspire 2's motors. First, please remove the original DJI Inspire 2 adapters.
- Self tightening adapters are compatible with motors with mounting holes distance of 12mm and 13mm.
- The arrow on the self tightening adapter should be pointing to the direction of propeller rotation.
- Short screws are used to connect the bottom part of the self tightening adapter to the brushless motor using the 13mm Set of mounting holes.
- Longer screws are used to mount the propellers to the top part of the self tightening adapters using the 13mm Set of mounting holes.
- Please confirm the propellers are rotating in the same direction as the brushless motors before flight. (Leading edge is facing the same direction of motor’s rotation) Do not screw right on the propeller. Do not over tighten screws. Use adapter plate included.
- Please check for loose caps and tighten them before each flight
- Do not screw right on the propeller. Do not over tighten screws. Use adapter plate included.
- Please Note: Final balance check is suggested before flight due to external factors such as temperature, handling during transit may vary the balance of the propeller.

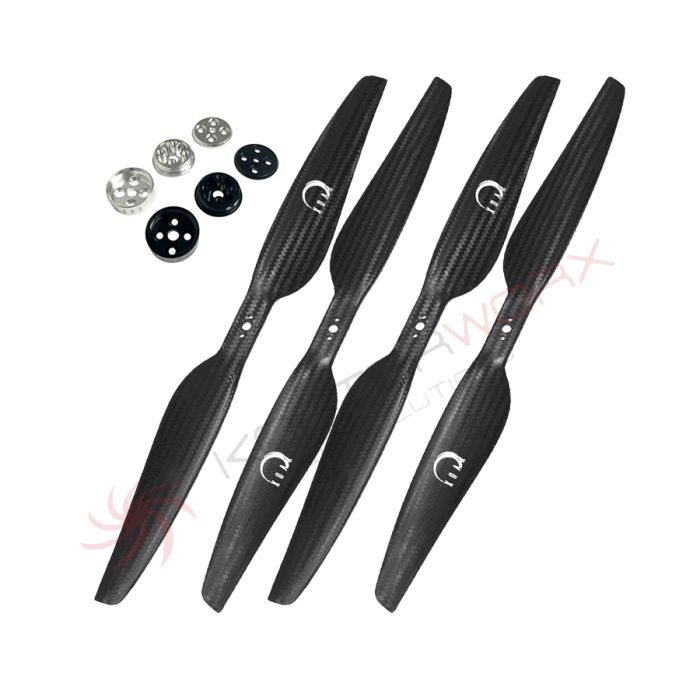

- 2 x Xoar 2nd Gen PJP-T-L15X5-IN2 1550Carbon Fiber Propellers CW
- 2 x Xoar 2nd Gen PJP-T-L15X5-IN2 1550 Carbon Fiber Propellers CWW
- 4 x Aluminum Self Tightening Adapter (2 Silver for CWW, 2 Black for CW)
- 16 x M3 Short Screws
- 16 x M3 Long Screws
- 1 x Hex L-wrench for M3 screws.
