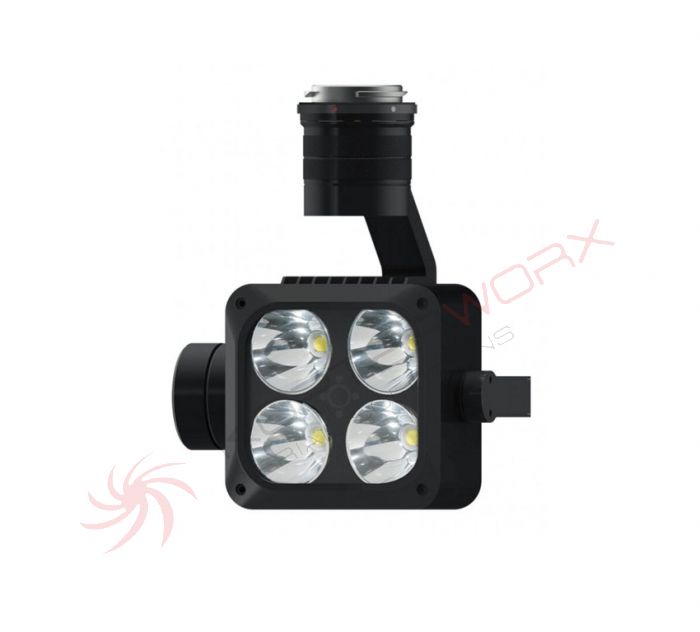

DJI Matrice Wingsland Z15 LED Spotlight
Z15 Spotlights are not compatible with the M300. A firmware update is required to make them compatible. Unfortunately, it cannot be done on the M300 itself; an M210 V2 is required. With an M210 V2 you can update the gimbal with the DJI Assistant software for Matrice.
The Wingsland Z15 is a bright, 3-axis stabilized gimbal spotlight with high power beads. Powered by DJI SkyPort, it has an operating range of up to 150 m and can be easily integrated onto DJI Matrice 200 Series V1 and V2 drones, lighting the space at night or in lowlight conditions for users in firefighting, emergency response, law enforcement and beyond.
The Wingsland Z15 is a bright, 3-axis stabilized gimbal spotlight with high power beads. Powered by DJI SkyPort, it has an operating range of up to 150 m and can be easily integrated onto DJI Matrice 200 Series V1 and V2 drones, lighting the space at night or in lowlight conditions for users in firefighting, emergency response, law enforcement and beyond. Supports Dual Intelligent Protection 150 m Max Range Max Power 48 W Downward Gimbals
Modes
Switch between Always on, Flashing, and SOS modes for different environments and applications.
Air Cooling System
The built-in air-cooling system prevents the spotlight from overheating by constantly dissipating heat.
Intelligent Protection
The Wingsland Z15 is protected against overheating. The system will automatically adjust when the internal temperature exceeds 90°C.
Supports Dual Downward Gimbals
The Wingsland Z15 can be used with DJI Zenmuse payloads on DJI aircraft that include a dual-downward gimbal, helping to illuminate operations.
APPLICATIONS
Public Safety
Thanks to its high luminance and long operating range, the Wingsland Z15 provides public safety officials crucial visibility in lowlight conditions across many different types of missions, helping teams gain an aerial overview over a large area.
Some applications include:
Firefighting: light up a path to guide the public to a safe place after a fire or a natural disaster.
Emergency Response/Search and Rescue: locate missing persons in hard-to-reach areas when visibility is low.
Law Enforcement: act as a flexible light source for crowd management, forensic investigations, or routine patrols.
Infrastructure/Facility Repair and Maintenance
When power suddenly cuts off or when structures collapse at night, the Wingsland Z15 can be used to light up a large area from the air so that emergency repairs can be conducted in an efficient, timely manner. This will help keep both the public and the personnel safe as well as save costs.
Specs:
| Port Type | DJI SkyPort |
| Dimensions | 100 x 110 x 150 mm |
| Weight | 500g |
| Rated Power | 48 W |
| Voltage | 6V |
| Power | 40 W |
| Luminous Flux | 10200 lm |
| FOV | 15° |
| Operating Range | 150m |
| Area Coverage | 1863 m² @ 120 m: 323 m² @ 50 m |
| Illuminance | 4 lux @120m; 11 lux @60m; 47 lux @30m |
| Angular Vibration Range | +-0.02° |
| Mount | Detachable |
| Controllable Range | Pitch: -90° to +90°, Yaw: +-170° |
| Max Control Speed | Pitch: 60°/s, Yaw: 60°/s |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
COMPATIBLE PRODUCTS
DJI Matrice 200 Series, Matrice 200 Series V2, Matrice 300 Series
DJI PILOT
The Wingsland Z15 can be controlled using the DJI PILOT app. It supports the use of both Wingsland and DJI Zenmuse payloads on the models that include a dual-downward gimbal, including the M210, M210 V2, M210 RTK, M210 RTK V2 and M300.
