DJI SDR Transmission Combo
DJI SDR Transmission - Limitless Potential
- SDR Transmission, Stable & Anti-Interference
- Strong penetration, extended transmission range
- High bitrate, high image quality
- Innovative USB-C monitoring experience
- Broadcast mode, unlimited number of recipients
- Ronin Compatibility & Remote Control
SDR Transmission, Strong and Stable
DJI SDR Transmission is based on Software Defined Radio technology and uses both SDR and Wi-Fi video transmission modes. SDR technology takes video transmission performance to a whole new level, offering greater stability, interference resistance and penetration capability. In time-limited situations, DJI SDR Transmission also offers the option of Wi-Fi transmission to provide workers with more flexibility.
SDR vs Wi-Fi
- Transmission range: increased by 650%
- Transmission bit rate: increased by 67%
- Transfer latency: Improved by 30%
Mile-long transmission, robust penetration
DJI SDR Transmission has a range of up to 3 km and is suitable for wide-area, dynamic filming scenarios. With outstanding penetration ability, it meets the requirements for on-site live feed monitoring in a variety of complex scenarios.
20 Mbps high bitrate, 1080p FHD image quality
DJI SDR Transmission supports 1080p/60fps live feeds with a high bitrate of up to 20 Mbps, ensuring smooth monitoring and collaboration.
Seamless automatic frequency switching
DJI SDR Transmission supports automatic switching between 2.4 GHz, 5.8 GHz and DFS frequency bands. When interference occurs, it can automatically switch to the optimal channel, easily handling complex environmental conditions.
Unlimited number of receivers
In broadcast mode, each transmitter can be connected to an unlimited number of receivers, enabling high-quality monitoring for multiple employees and meeting the independent monitoring needs of different professional roles.
Additional functions
35 milliseconds, low latency transmission
The minimum latency of only 35 ms ensures smooth monitoring and efficient cooperation.
Metadata transmission for professional applications
DJI SDR Transmission supports the transmission of metadata from popular cinema cameras such as ARRI and RED over SDI. This gives directors, camera operators and DIT teams quick access to detailed shooting information in real time.
Communicate with voice call
DJI SDR Transmission enables direct, real-time communication between receiver and transmitter, enabling seamless conversations between cameraman and director or client at any time.
Agile and innovative monitoring
Compact, Lightweight and Portable
Thanks to the lightweight design and foldable antennas for easy storage, a single transmitter or receiver weighs approximately 145g. This not only ensures portability but also supports various mounting methods to meet a wide range of field requirements.
Innovative USB-C port, diverse monitoring methods
DJI SDR Transmission supports multiple monitoring methods and can output three SDR signals and two Wi-Fi signals simultaneously. The receiver can output to monitors via SDI/HDMI. In addition, the transmitter can be directly connected to smartphones or tablets via Wi-Fi, providing cost-effective two-channel monitoring without the need for a receiver.
In addition, DJI SDR Transmission also introduces a USB-C output monitoring method that combines stability with convenience. Receiver can be connected to a smartphone or tablet for smooth and stable monitoring.
Newly updated DJI Ronin app
Camera Index Switching
When DJI SDR Transmission is connected to the DJI Ronin app in broadcast mode, you can seamlessly switch between camera indexes within the app to meet monitoring needs for different camera views.
Local Recording and Playback
The app supports local recording, and recorded content can be checked on the playback page.
Multiple Monitoring Options
The app supports common monitoring assistance tools such as LUT, Peaking, Waveform and False Colors, providing a professional monitoring experience.
- LUT
- Peaking
- Waveform
- False color
Supporting features
Control for the RS series stabilizers
Supports the functions Force Mobile, virtual joystick and gimbal reorientation.
Channel Settings
When DJI SDR Transmission is connected to the app in SDR Control mode or Wi-Fi mode, you can change the channel within the app while monitoring the channel quality.
Camera Control
DJI SDR Transmission supports PTP control of cameras, viewing and adjusting aperture, shutter, ISO, and even triggering the camera's photo and video recording functions via the app. It also supports CEC control for Sony cameras, which is where the mirror control mode comes into play.
Comprehensive connectivity and power solutions
DJI SDR Transmission connectors for transmitter
USB-C port
USB-C power and gimbal communication port
USB-C port
USB-C port for firmware upgrade
3.5mm stereo jack
Supports one-on-one voice calls.
HDMI input
Supports input of 1080p/60fps videos.
SDI input
Supports input of 1080p/60fps videos.
DJI SDR Transmission connectors for receiver
USB-C port
USB-C port for firmware update and video output
USB-C port
USB-C power port
3.5mm stereo jack
Supports one-on-one voice calls.
HDMI Output
Supports 1080p/60fps video and audio output.
SDI Output
Supports 1080p/60fps video and audio output.
Versatile and Customized Power Options
Gimbal Power
Thanks to the built-in power supply, when using the DJI RS 4 Pro, DJI RS 4 or DJI RS 3 Pro, the transmitter can be mounted on the gimbal and powered directly by it, eliminating the need for a separate battery.
Alternative Power Options
NP-F Power
Both the transmitter and receiver support industry-standard NP-F batteries, which provide a voltage of 6.8 to 8.4 V.
USB-C Power
DJI SDR Transmission has expanded compatibility. It can be powered by a standard PD protocol charger with a 9 V, 2 A USB-C power input.

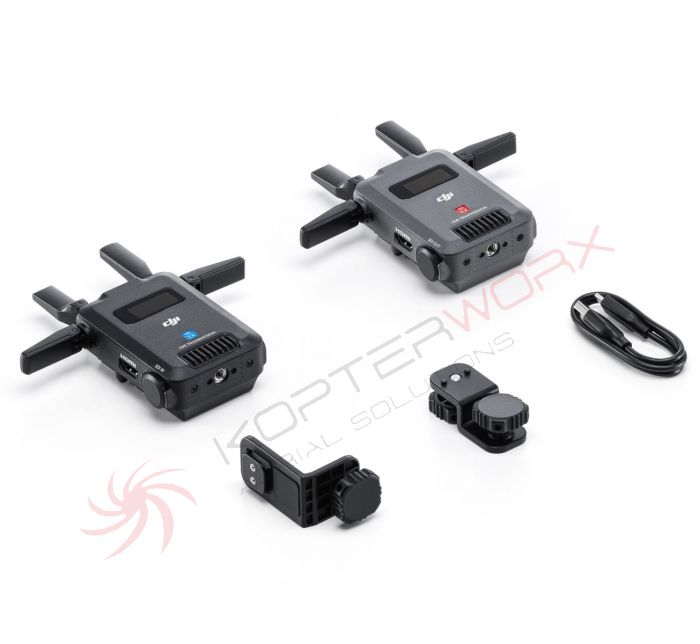

Scope of delivery:
1x SDR transmission transmitter (TX)
1x SDR transmission receiver (RX)
1x USB-A to USB-C cable (43 cm)
1x adapter plate for attaching the camera to the transmitter
1x adapter plate for attaching the gimbal to the transmitter
