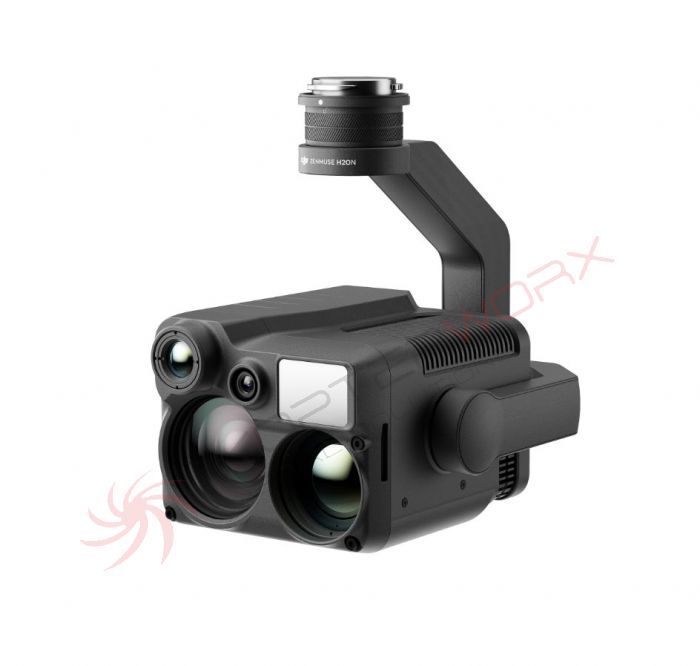

DJI Zenmuse H20N + DJI Care Ent. Basic
DJI Zenmuse H20N+ DJI Care Ent. Basic
Vision Beyond Darkness
"N" for Night Vision
The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
- Starlight Night Vision
- 640×512 Dual Thermal Cameras 2×, 8× Optical Zoom
- 20× Hybrid Optical Zoom
- Laser Rangefinder
- 1200 m Max Range
- Synchronized Split-screen Zoom
- Intelligent Night Scene Enhancement
- IP44 Rating
- -20°C to 50°C Operating Temperature
Sensors Upgraded Across Multiple Dimensions
Infrared Zoom
Dual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm)
8x Zoom (Equivalent Focal Length: 196 mm)
See the Big Picture
Night Vision Wide Camera
Starlight Sensor: 2MP
Stronger Low-Light Performance
Pierce Through the Veil
Night Vision Zoom Camera
Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom
Low-Light Details
Precise Distance Data
Laser Rangefinder
Range: 3 m to 1200 m
Accuracy: ± (0.2 m + D×0.15%)2
Thermal and Starlight Vision to Elevate Your Operations
See Through the Night
The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light Environments.
Infrared Zoom
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.
Synchronized Split-screen Zoom
H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.
More Intelligent Features
- PinPoint
- Smart Track
- High-Res Grid Photo
- One-tap Panorama
Thermal Features
Color Palettes
Adjust the colors applied to the thermal data based on the mission requirements.
Isotherms
Visualize a specific band of temperatures to highlight your targets.
Temp. Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
R-JPEG Images
Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
In the Box:
1x Zenmuse H20N
