External compass

This is an external compass for connection to the NaviCtrl.
This module is used when the compass needs more distance to magnetic interferences.
A correct compass value is essential for reliable navigation.

The board can be connected to the NaviCtrl V2.1 directly from the Molexkabel.

If the ext. Compass should be connected to the NaviCtrl V2.0, please refer to the soldering instructions in the wiki

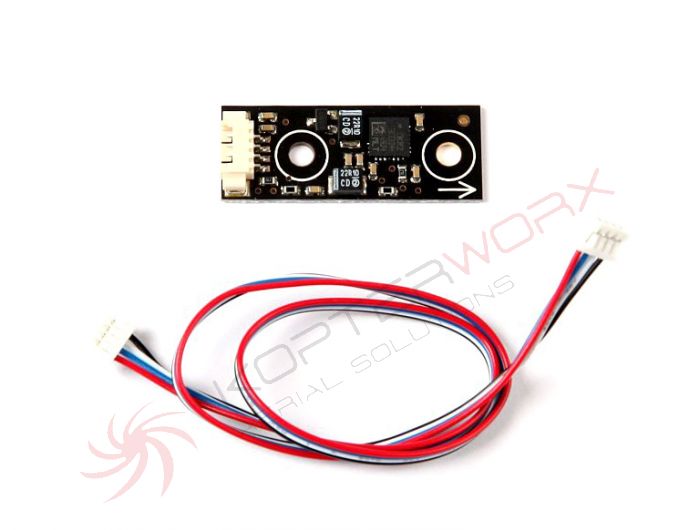

delivery

• 1 mounted board
• 1 Molexkabel
• 1x 10nF capacitor

Links

• Instructions in the wiki ...
