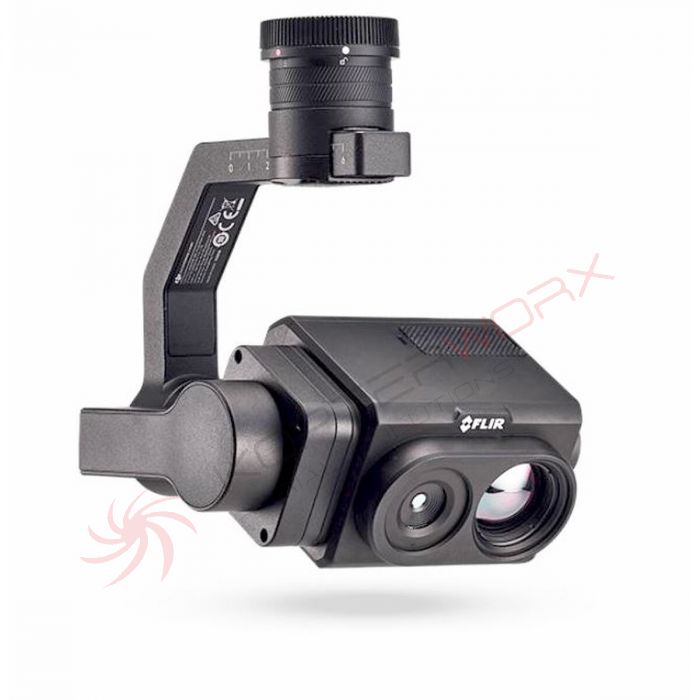

The radiometric dual-Boson® FLIR Vue® TZ20-R plug-and-play payload is designed to improve mission success and is fully integrated with the DJI V2 Matrice 200-series and 300 airframes. This system provides a wide 95-degree field of view for maximum situational awareness and a narrow 18-degree field of view to put more pixels on target when needed. With 20X zoom capabilities, the FLIR Vue TZ20-R allows drone pilots from the public safety and industrial inspection sectors to gain field of view flexibility for improved image detail and magnification to assess situations and make critical decisions.
20X THERMAL ZOOM TO SUPPORT SITUATIONAL AWARENESS
Features wide field of view to cover large areas in a single flight or narrow in on a target with 2x to 20x zoom for enhanced image detail
HIGH RESOLUTION DUAL FLIR BOSON CAMERAS
Factory calibrated, radiometric dual 640 × 512 Boson thermal cameras equipped with expandable infrared video streaming at 25 Hz
READY TO FLY OUT OF THE BOX
Plug and play model quickly connects with Skyport V2.0 gimbal and is compatible with DJI V2 M200-series and M300 airframes
SPECIFICATIONS
OVERVIEW
Dimensions Payload: 75 × 70 × 55 mm
With gimbal: 128 × 154 × 141 mm
Pixel Pitch 12 µm LWIR
Thermal Sensitivity 85 mK @ F/1.0
Weight 640 g
Zoom 5x optical (WFOV/NFOV), 4x digital
Effective zoom: 1x (95°), 2x, 5x, 10x, 20x (4.5°)
Ground Control DJI Pilot App
Airframe Capatibility DJI V2 Matrice 200-series and Matrice 300
ELECTRICAL & MECHANICAL
Mechanical Interface Skyport 2.0
ENVIRONMENTAL & APPROVALS
Storage 2 micro SD cards
Operational & Storage Temperature -20 to 45°C (-4 to 113°F)
Tested EMI Performance -20 to 60°C (-4 to 140°F)
Environmental Sealing IP44
IMAGING & OPTICAL
Array format 2 Boson 640 × 512
Streaming Video 640 × 512 @ 25 Hz
IR Camera Optics Wide FOV: 95° HFOV, 4.9 mm EFL
Narrow FOV: 18° HFOV, 24 mm EFL
METER DATA
- Still: Radiometric JPEG, JPEG, raw TIFF
- Periodic capture 1s – 30s interval, all still image Formats
- Video MPEG 25Hz (zoomed), Radiometric CSQ 5Hz (zoomed)
- Raw multipage TIFF 10Hz (wide and narrow FOV separate)
POWER
Electrical Interface Skyport 2.0, 13.6 V/2A
Still: Radiometric JPEG, JPEG, raw TIFF Periodic capture 1s – 30s interval, all still image formats Video •MPEG 25Hz (zoomed) • Radiometric CSQ 5Hz (zoomed) • Raw multipage TIFF 10Hz (wide and narrow FOV separate)
