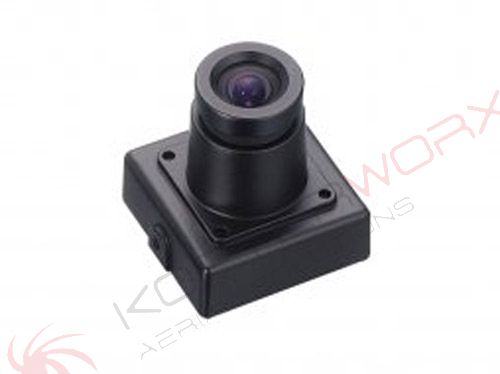

FPV CAM Super HAD 700
.
700TVL Super Mini Camera 20x20mm One board
Description
Fetures:
* SONY Super HAD CCD Sensor
* Features: D-WDR , 2DNR , Lens Shading, DPC
* Hi-Res.: 700TVL
* De-moire suppress
* Dimensions: 20*20mm (one board)
* Built-in OSD (on screen display) function (optional)
* Sharp image and great illumination;
* Board lens, pinhole lens and vari focal lens optional;
* Tiny size and light weight for limited space use.
|
Item name
|
NEXTCHIP-2090 CCD Camera
|
|
Image Device
|
1/3" Color Sony Super HAD (Hi-Res.)
|
|
Picture Elements
|
NTSC:976x494,PAL:976x582
|
|
Resolution
|
700 TVL ( B/W 750TVL)
|
|
Min. Illumination
|
0.1Lux / F2.0
|
|
S/N Ratio
|
More than 50dB
|
|
Electronic Shutter
|
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
|
|
FlicKless Mode
|
On / Off
|
|
Lens Furnished
|
Board Lens 3.6mm / F2.0 (option:2.5/4.3/6/8/12/16mm) Lens Shading(LSC) *
|
|
White Balance
|
Auto (ATW1, ATW2,AWC-SET,MANUAL)
|
|
AGC Gain Control
|
High / Middle / Low (6dB~40dB)
|
|
Back Light Comp
|
On / Off (2AREA) , HLC
|
|
Motion Detection
|
On / Off (4AREA) * alarm output
|
|
Image Function
|
D-WDR
|
|
Noise Reduction
|
2DNR
|
|
Parking Line
|
On / Off
|
|
Day & Night
|
Color, B/W(IR SMART), AUTO ( Level Adjust ) , EXT
|
|
Sync. System
|
Internal
|
|
Video Output
|
1 Vp-p / 75 Ohms
|
|
Power Supply
|
DC 5V~15V
|
|
Power Consumption
|
77 mA max
|
|
Operating Temp.
|
-10°C ~ 85°C
|
