FrSky R9M Lite & R9-Slim 868MHz Combo for Long Range RC

FrSky R9M Lite and the R9 Slim Combo 868mhz Long Range Transmitter and receiver module for the XLite EU LBT Firmware.

This is specially designed for the new compact Transmitter the XLite and is also firmware upgradeable via the radio. Long range in such a small package is now possible with the R9M lite and R9 mini.

R9M Lite Description

R9M Lite module is a 868MHz frequency system which is specially designed for FrSky Taranis X-Lite transmitter. This being the “Lite” version of the R9 series works perfectly with all receivers in the R9 series. In addition, it gets super low latency and high precision thanks to the upgraded digital interface and high-speed data transmission. The R9M Lite has the extreme performance with the ability to achieve long distances with one RF power output at 100mW.

SPECIFICATION

• Dimension: 62.4mm × 30mm×14.5mm (L×W×H)
• Weight: 20g
• Number of channels: 16 channels
• Operating Current: 100mA@7.2V
• RF Operating Frequency: 868MHz
• RF Power (Non-EU): 100mW (with telemetry)
• RF Power (EU): 25mW (with telemetry) /100mW (without telemetry)
• Compatibility: R9 series receivers

FEATURE

• Firmware upgradable on Taranis X-Lite
• Telemetry data transmission supported
• Long Range, Low Latency and High precision RC system

FEATURE

868MHZ(EU Version)
Mini size and superlight weight
S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
Supports redundancy function
Low latency and high precision
With RSSI output in SBUS
Detachable Ipex connector antenna

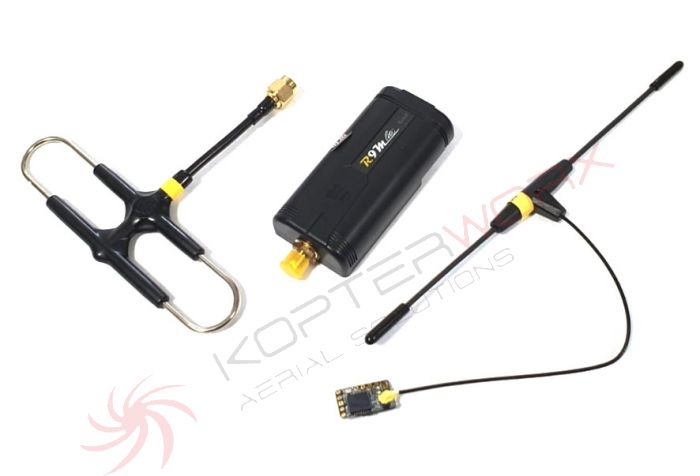

Including

• 1x R9M Lite module
• 1x 868MHz module antenna
• 1x R9 Slim receiver
