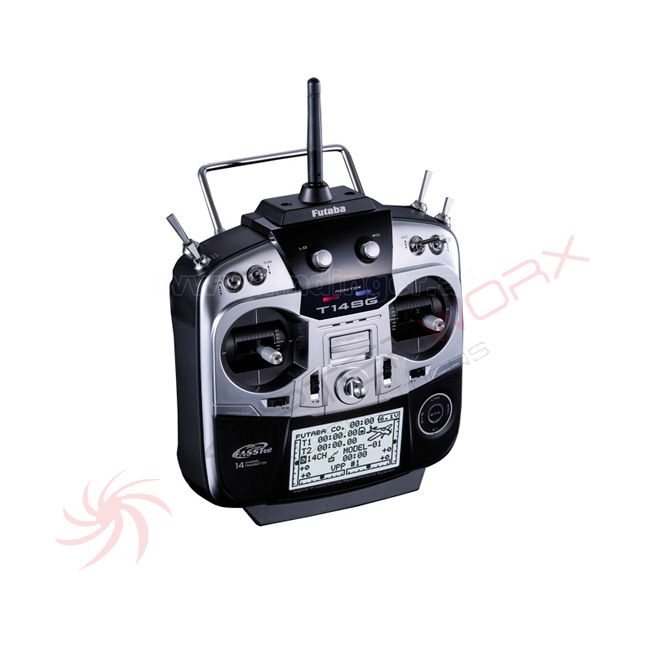

Futaba T14SG

About the 14SG:

Channels: 12 proportional, 2 switched
Compatible with FASSTest, FASST and S-FHSS protocols
FASSTest telemetry – compatible with Futaba telemetry sensors (sold separately)
Free user-updatable software
30-model memory
10-character user naming
10-character model naming
Airplane, helicopter and glider programming
Large, 1.75” x 3” backlit LCD screen with 128 x 64 resolution
SensorTouchâ„¢ programming
SD Card compatibility for external model memory and software updates (SD: 32MB-2GB; SDHC 4GB-32GB)
Left and right assignable slider switches
Two assignable rotary knobs
Six assignable three-position switches
One assignable momentary two-position switch
One assignable two-position switch
Comfortable rubber grips on the sides and back
Wide top switch spacing
Adjustable stick tension
Dual ball bearing gimbals
4 vibration warning types
Home/Exit; User Menu/Servo Monitor buttons
Audio earphone jack (for telemetry alarms)
6V 1800mAh NiMH battery pack
User stick calibration
Trainer system
Servo speed adjust
5 programmable mixes
V-tail, Ailvator, winglet, motor mixing
Trim mix
Logic switch (condition switch only)
Internal programmer for S.Bus servos
User menu
Servo monitor (neutral and moving tests)
2 count up/countdown timers
Integral timer
Model timer
Quick model select



Airplane Features

7 different wing types
3 different tail types
2 different rudder types
Flap setting menu
Differential ailerons
Aileron to camber flap mixing
Aileron to brake flap mixing
Aileron to rudder mixing
Rudder to aileron mixing
Rudder to elevator mixing
Camber mixing
Elevator to camber mixing
Camber flap to elevator mixing
Snap roll mixing
Airbrake mixing
V-Tail mixing
Ailvator
Winglet
Motor mixing
Fuel mixture mixing (single and twin)
Gyro mixing
Throttle curve (5-point)
Pitch curve (5-point)
Idle down

Helicopter Features

6 swash plate types
Pitch/throttle curves (5-point)
Throttle hold
Swash mix
Throttle mix
Pitch to rudder mixing
Fuel mixture
Gyro (Flybarless support)
Governor (700-3500 rpm)
Hover pitch
Hover throttle
High/low pitch
Swash AFR
Swash setting (mixing rate, linkage compensation, speed compensation)
Swash ring (electronic)
Throttle cut

Glider Features

11 different wing types
3 different tail types
2 different rudder types
Flap setting menu
Differential ailerons
Aileron to camber flap mixing
Aileron to brake flap mixing
Aileron to rudder mixing
Rudder to aileron mixing
Rudder to elevator mixing
Camber mixing
Elevator to camber mixing
Camber flap to elevator mixing
Butterfly mixing
Butterfly to elevator mixing

Inclusiv:

1 x 2.4 GHz transmitter T14SG FASSTest
1 x 2.4 GHz receiver R7008SB FASSTest
1 x Transmitter battery Futaba HT5F1800B (10.8W) 6V 1800mA (Original Futaba)
1 x Futaba TX RX Charger Imput: 230V 50Hz (EU)
Output: 6V 170mA TX
6V 100mA RX

1 x RX On/Off Switch
