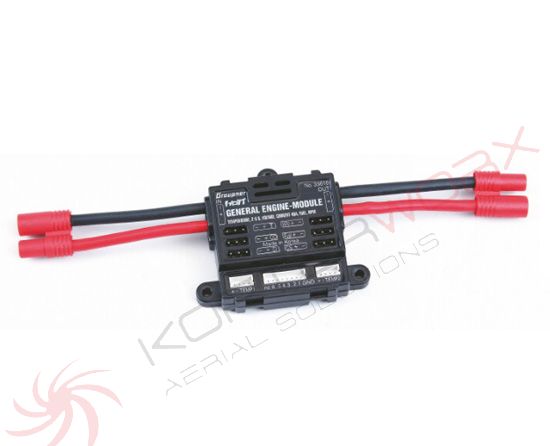

General modul Hott

General sensor for Graupner HoTT receiver and models with internal combustion or electric motor.

For Telemetry/DJI Naza users.

Functions:

• 2x temperature and voltage measurements with warning thresholds for minimum/maximum voltage and minimum/maximum temperature
• Single cell measurement with warning threshold for minimum voltage
• Voltage, current, and capacity measurement with warning thresholds for min/max voltage, max capacity, and max current
• Current limiting programmable
• Messurment of the current with shunt resistors 2x 1 mOhm parallel = 0.5 mOhm
• RPM measurement and warning threshold for min/max rpm
• Fuel measurement with warning threshold in 25% steps
• Warning time can be set to: OFF, 5, 10, 15, 20, 25, 30 seconds, always
• Warning repeat time can be set to: always, 1, 2, 3, 4, 5 minutes, once

Important Note when using the modules 33600, 33601, 33610, 33611 and 33620:

Do not carry out any programming work on the sensors while the model is flying, otherwise there is a real risk that your model will fly out of control while you are not concentrating on it!
If your model is fitted with two or more receivers, it is absolutely essential that you do not carry out programming work during a flight, as this can alter the settings in the receivers to which no telemetry equipment is connected; in the worst case this could result in the model crashing! For this reason always carry out programming on the ground, and check that only the receiver with connected sensors is powered on.

Connections:

• 2x temperature; optionally selectable from 0 to either 120°C or 200°C and voltage measurement to 60 V DC
• 1x rpm measurement up to 100 000 rpm with two-blade propeller
• 1x speed controller/ servo input, 1x input rpm control, 1x speed controller / servo output for rpm control
• 1x current, voltage, and capacity measurement up to 40A (60A for 1 s) and up to 30V
• 1x single-cell monitoring for 2 - 6S lithium batteries (LiPo, LiIo, LiFe)
• 1x receiver power supply input and output
• 1x telemetry connection for receiver
• 1x fuel sensor 0%/25%/50%/75%/100%
