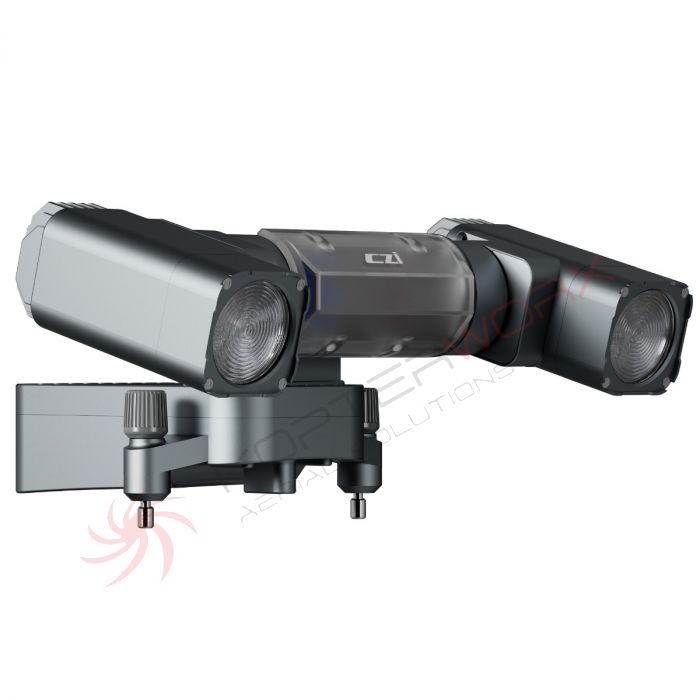

GL10 Gimbal Searchlight for DJI Mavic 3 E/T
Czi GL10 Gimbal Searchlight, with a lightweight design and the rated power 30W, can emit a sharp beam of 12.5°, effective search distance up to 100 meters, uniform brightness, high color consistency, effectively meet the requirements for small drones to do night inspection , location indication, search and rescue and other application scenarios. Equipped with a new generation of dual-axis gimbal stabilization technology, GL10 can realize precise rotation and pitching movement, and further enhance the stabilization and anti-shake power; through the integration of AI algorithm smart technology, it can realize automatic centering of the light spot, and make the light beam changes with the angle; GL10，with built-in highlight red and blue flashing lights，can effectively identify the law enforcement identities and deter suspected targets. It keeps pace with DJI Mavic 3 Enterprise drone and brings more possibilities for drone applications.
Built-in micro gimbal
Gimbal with dual-axis stability augmentation and anti-shake. precise rotation and pitching. Pitch adjustment -90° ~ +70° .
Intelligent integration
AI algorithm intelligent technique. Automatically centering for light spot. Built-in red and blue flashing lights.
LED linear light-adjust
The rated power 30W. Irradiation angle 12.5°. Effective search distance 100m.
Fast installation
Fit DJI Mavic 3 Enterprise drone. Integration with a lightweight. Unique quick release design.
Basic function
• Light supplement for white light
• Red and blue flashing lights
• Gimbal with dual-axis
• Stability augmentation
• AI algorithm of gimbal,
• Automatically centering for light spot
Parameter information
• Model: GL10
• Electrical interface: DJI PSDK
• Weight: 130g±4%
• Dimension: L107*W128*H51.5
• Total power: 30W
• LED power for white light: 20W
• LED power for red and blue light: 2W
• Supply voltage: 15V
• Luminous flux: 1830lm±3%
• FOV/°: 12.5
• Search distance: 100m || 75m || 50m
• Diameter of light spot: 22.8m || 17.1m || 11.4m
• Search area: 407m || 229m || 102m
• Center illumination: 5.8Lux || 13.3Lux || 22.8Lux
• Controlled rotation: Pitch -90°~+70°
• Working temperature: -20°C~+50°C
