GPS-Shield 1,1
.

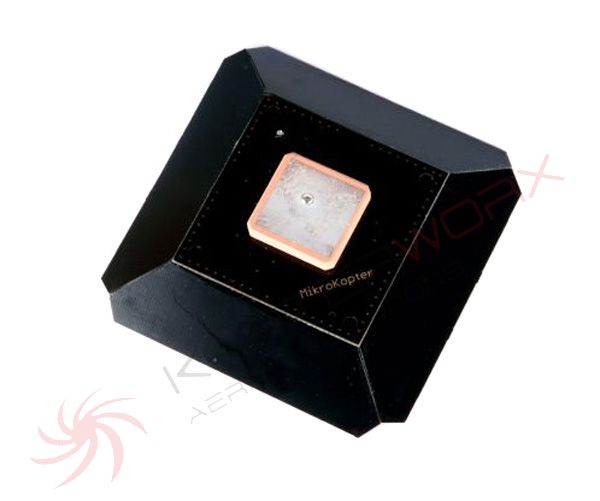

This cover made out of PCB-material is attached directly to the MKGPS board.
The side panels are easily connected using solder.
This is also the ground plane for the GPS antenna. This increases the GPS reception. The signal to noise ratio for the rest of the electronics in MikroKopter is increased.
The side panels are easily connected using solder.
This is also the ground plane for the GPS antenna. This increases the GPS reception. The signal to noise ratio for the rest of the electronics in MikroKopter is increased.
Technical Data
- PCB-Material: 1 layer, 0.5 mm thick
- Soldermask on both sides Black
- Weight: about 10g
scope of delivery
- 4 PCB parts to construct the sides of a cap
Advice
- the MKGPS board (order separately) is the 'cap'
