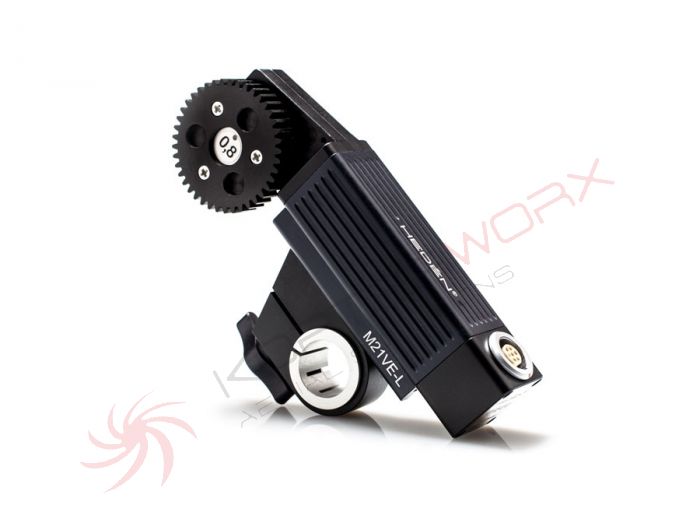

Hedén FIZ Motor M21VE-L
Hedén M21VE-L - One of the best motors for Movi PRO, XL, Bushpilot, 100% compatible and working.
For connecting motor to Movi Series u need:
http://www.kopterworx.com/shop/movi/movi-pro/movi-pro-lens-motor-cable.html
The Hedén M21VE-L is our smallest and lightest motor for professional film and broadcasting cameras. Its light weight makes the M21VE-L a popular choice for drone operators and its size lends especially well for very crowded spaces. The M26VE has higher torque for stiffer lenses, but when size and weight matters more, the M21VE-L is the best choice and it’s as silent and reliable as any Hedén motor. Mounts vertically on a 19 mm (0.75”) rod without the need of tools. The accompanying bracket reduction insert will fit on a 15 mm (0.59”) rod and additional sizes are available in our accessories section. Interchangeable snap on gears that can be mounted on either side of the gear housing ads to the versatility of the Hedén motors. Supplied with a 0.8 gear module and with 0.4, 0.5, 0.6 modules available as extras. Comes with a variety of encoders and resistors to suit your need.
Specifications:
- Height (body): 28mm/1.10” (Body with gear housing): 34mm/1.33”
- Width: 21mm/0.83”
- Length: 106,5mm/4.19”
- Weight (without bracket and gears): 135,5gr/ 4.78 oz
- Torque: 1.0 Nm
- Connector: LEMO 7 pin connector
Includes:
- Hedén M21VE-L Motor
- 0.8 gear module
- Bracket with 19mm to 15mm (0.75” to 0.59”) reduction insert
