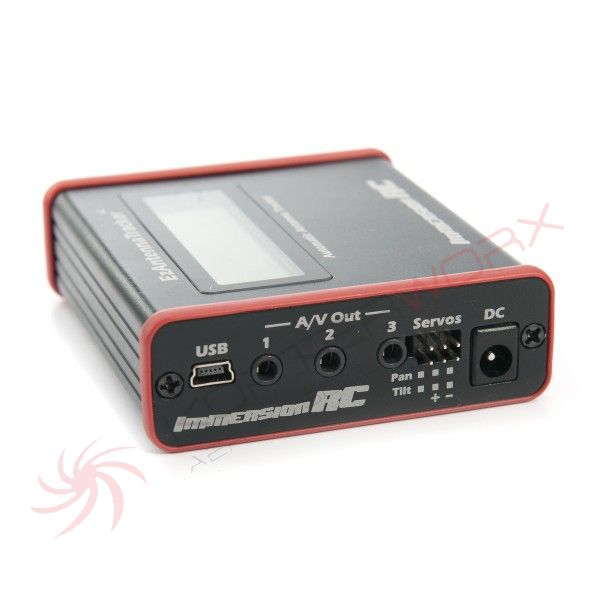

ImmersionRC EzAntennaTracker v2
ImmersionRC EzAntennaTracker v2
-The second version of the first Commercial Antenna Tracker for FPV/UAV use
-Standard 3-pin 0.1" headers for hookup to standard servos for Pan/Tilt.
-Uses telemetry data downlinked from an EzOSD, TinyTelemetry module, or ImmersionRC's XuGong v2/Pro quadcopters.
-Integrated LCD, displays live telemetry and sensor data, including EzUHF link status
-Standard USB port for configuration and firmware upgrade
- LCD-based user interface for receiver control (Channel, Band, with Frequency readout)
-Three button intuitive user-interface
-Non-volatile storage of last plane position, useful for locating a lost model
-Non-volatile storage of the antenna’s position, and orientation, no need to reconfigure for repeat flights at the same location
-Three 3.5mm 4-pole sockets for connection to Goggles, LCD monitors, DVRs, etc.
- One 6-pin Mini-DIN connector for hookup to an ImmersionRC receiver (Includes Power, A/V, and Control)
Supplied with
1 x 30cm RCA AV cable (3.5mm 4-POL to 3xCinch)
1 x 50cm 6-pin Mini-DIN to 6-pin Mini-DIN cable
1 x 2.1mm DC power plug to bare ends, 1m length
