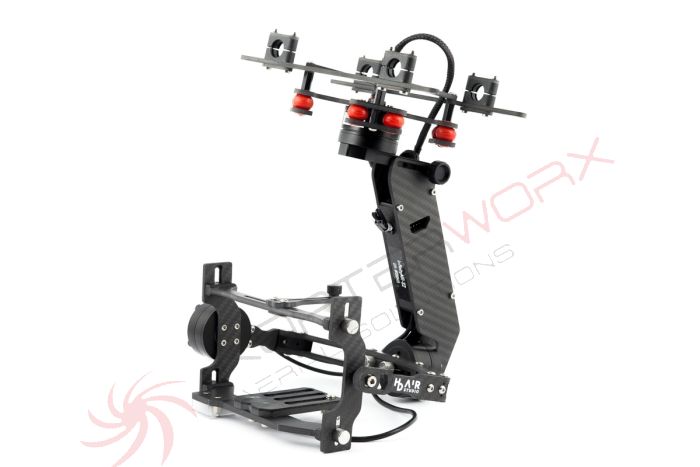

InfinityMR-S2 - 3axis gimbal with encoders

InfinityMR-S2 is a light, powerful, reinforced gimbal for Sony A6500 size cameras. Thanks to its smart design and top-quality materials, it is only 560g, what makes it one of the lightest gimbals in this class! Built-in slipring connector allows for clean wires routing and saves additional weight (as you don’t need to use separate battery for gimbal only). AlexMos controller with encoders delivers best quality stabilization both in the underslung and inverted modes.

1. 3axis IMU and encoder based stabilized gimbal
2. Supported cameras: Sony A6500; Sony A6000 and all similar (up to 900g grams)
3. Weight: 560g without damping system / 628g with damping system
4. Underslung and inverted mode
5. Built in slipring with 4 wires for additional devices
6. Operating voltage: 3-6s lipo
7. Reinforced carbon fiber for best rigidity and lowest weight
8. Basic water and dust resistance
9. Dedicated encoder motors
10. AlexMos 32bit controller
11. Ready to use, initially tuned out of the box
12. MAVLINK protocol support

Starting from firmware version 2.60, SimpleBGC32 controller used in InfinityMR PRO supports connection to an external flight controller (FC) using MavLink protocol. This protocol is used for connecting autopilots to a ground station (GSC) and OSD telemetry.
MavLink support was tested with the popular open-source flight controller ArduPilot: www.ardupilot.org

Benefits of connectiong gimbal to FC:
a) correcting of the gimbal IMU sensor
b) controlling gimbal automatically
c) remote editing of gimbal’s parameters
d) obtaining data from the RC receiver

InfinityMR-S2 brushless gimbal balancing
https://www.youtube.com/watch?v=A-QhaJF7Aok&t=2s

InfinityMR-S2 damping plate mounting
https://www.youtube.com/watch?v=d5cog7bSgDA

InfinityMR-S2 brushless gimbal unboxing
https://www.youtube.com/watch?v=ATBkHF95oTs&t=7s

InfinityMR-S2 radio controlled features
https://www.youtube.com/watch?v=Lb8bt7_QXaQ&feature=youtu.be
