Matek Digital Airspeed Sensor DLVR for Cube/Pixhawk2 I2C&Can

Matek Digital Airspeed Sensor ASPD-DLVR

All sensors DLVR series is the best airspeed sensor ArduPilot currently support.

Specifications & Features
• ArduPilot AP_Periph L431/F405/F303 CAN node
• All sensors DLVR-L10D, Industrial temperature range
• CAN & I2C Interface
• Typical Platforms: Fixed-Wing, QuadPlane, VTOL
• CAN JST-GH connector, DroneCAN Protocol
• I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
• F303 ver. (Black PCB)
  - UART1, Firmware update
  - UART2, Spare for external GPS
• F405 ver. (Blue PCB)
  - UART1, Firmware update
  - UART4, Spare for external GPS
• L431 ver. (Purple PCB)
  - UART2, Firmware update
  - UART3, Spare for external GPS
• CAN bootloader LED, Blue
• Fast blinking, AP_Periph bootloader
• Slow blinking, CAN Node ready
• 3.3V Power LED, Red
• Input voltage range: 4.5~5.5V
• Power consumption: 60mA
• Operating Temperatures: -20°C to 85°C
• Pressure Range: 2500Pa (± 10 inH2O)
• Burst Pressure: 75kPa
• Speed Range: ±250 km/h
• 22mm*22mm*12.5mm(F303 ver.)
• 23mm*23mm*12.5mm(F405 ver.)
• 4g

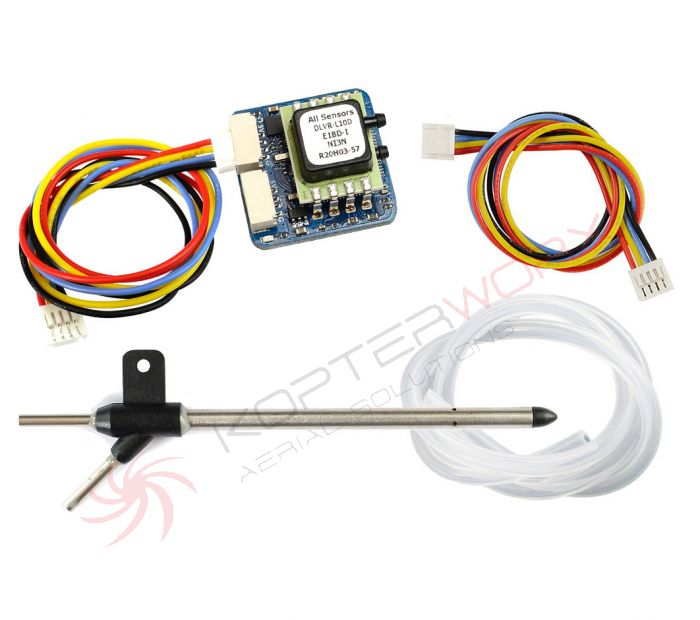

Includes
• 1x ASPD-DLVR
• 2x JST-GH-4P to JST-GH-4P 20cm silicon wire
• Pitot Tube
• Clear silicon tubing 40cmire
