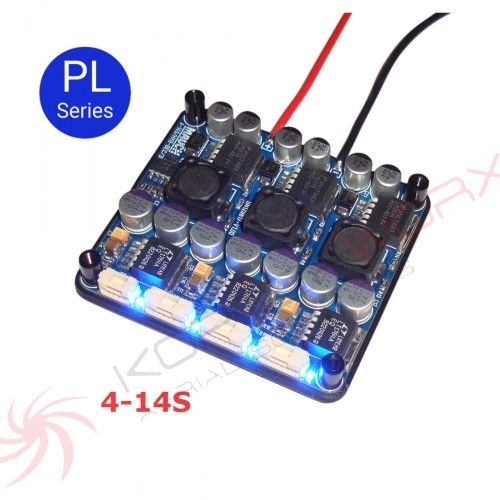

Mauch Premium Line PL 4-14S HYB-BEC / 2x 5.3V / 1x 5.0V

Mauch 4-14S HYB-BEC 5.30V 3A Output Suit Pixhawk 2 Backup BEC

Mauch BEC's are built the the highest quality and each unit is carefully tested before shipping. These are made to connect directly to the Pixhawk 2 Autopilot as a backup BEC. Due to the highest quality components the BEC runs only warm under full load with super low LDO of only 0.35V drop.

Specifications

Input 4-14S LiPo / 14.8 to 60V.

Output 5.3V / 3A -> +/- 0.05V –>

Input Reverse polarity protection

Panasonic FM input and output capacitors to protect UBEC from voltage spikes.

20cm output cable with Molex / 6p / Clik-Mate 2.0mm. (To connect to Pixhawk 2 / Battery 2 Input)

2 x 20cm spare wires with Clik-Mate 2.0mm crimp, for Battery 2 current and voltage sensing.

Dimensions: 54mm x 21mm x 14mm

Weight 17g with cables heat shrink
