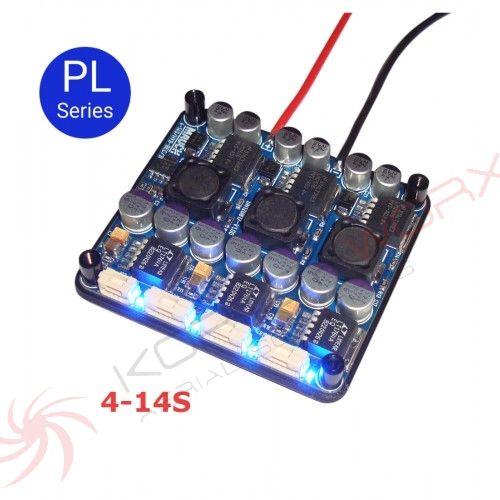

Mauch Premium line PL 4-14S HYB-BEC / 2x5.3V / 1x12.0V

Input 4-14S LiPo / max. 60V.

• Output 2x 5.30V / 1x 12.0V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current.
• Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output conector with Molex Clik-Mate 4p.
• Blue power "ON' LED.
• 59mm x 66mm x 13mm / 57g with enclosure(without cables)
• Delivery in PP box:
• Scope of delivery:
• 1x 021: PL 4-14S HYB-BEC / 1x 5.3V / 3A
• 1x 040: PL - Series sensor cable / L=150mm
• 1x 050: Backup cable for Pixhawk 2.1 / L=150mm
• 1x 5.0V output cable (white/black) one site Molex Clik-Mate 1.25mm-6p, the other site open. / L = 150mm
• 1x Enclosure
• REM: The BEC is delivered without an flight controller cable, so please selct the correct cable to match your FC:
• 041: DF13-6p -> Pixhawk 1 / APM... etc.
• 042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1
• 043: JST-GH-6p -> Pixhawk 3... etc
