MK GPS V2,1

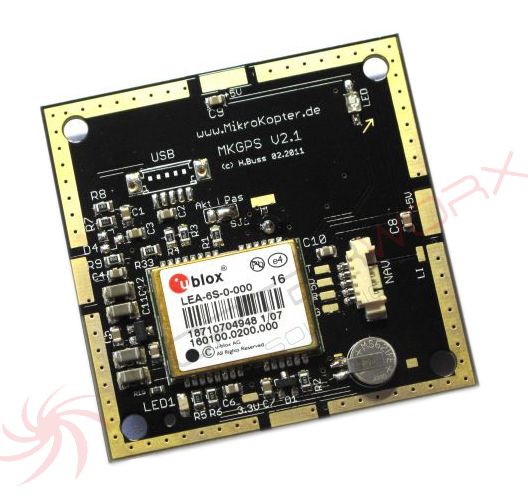

This is an MKGPS receiver with u-blox LEA6S GPS module and a passive antenna.

Alternatively, the module can also be operated with an active GPS antenna.

In connection with a NaviCtrl V2.x the MikroKopter can self-navigate
Preassembled; there are only a few through hole components for self-assembling

The board is tested and pre-programmed for use with the NaviCtrl board.

Scope of delivery

• 1x board (SMD-preassembled)
• 1x passive GPS antenna
• 1x cable with connector (5pin)
• NaviCtrl or MK3Mag not included in delivery

Hint

• Please do not touch the antenna with your fingers after soldering because of ESD. This could destroy the GPS modul.
