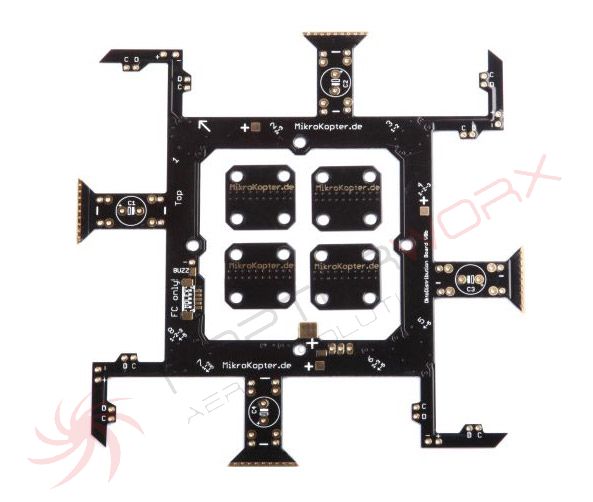

Okto XL power dist board V8

This is a Okto XL power distribution printed circuit board for 8 BL-Ctrls. The use reduces the wiring effort in building a OktoKopters significantly.

The 8 BL-Ctrl fit right into the distributor board. Also this board distributes the I2C data bus.
You can assemble optional cooling plates. (included in delivery). A Molex-connector can be assembled to connect the FlightControl easily

Technical Data

• 4 sided layout with 140um Copper
• Gold plated with black soldermask
• Dimensions: 150 x 150 x 1 mm

Scope of delivery

• 1 board, 4 cooling plates
