Matek Digital Airspeed Sensor ASPD-4525 for Cube/Pixhawk2

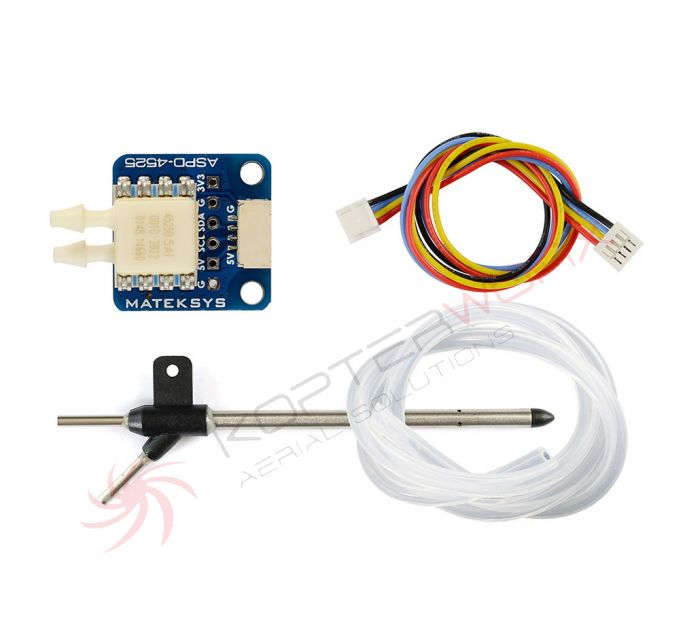

The Matek Digital Airspeed Sensor ASPD-4525 features a ASPD-4525 sensor board, JST-GH to JST-GH 20cm silicon cable, pitot tube and a clear silicon tubing (40cm) to help monitor your wing's airspeed !

Specifications
• Board Supply voltage: 4~5.5V DC
• Sensor: MS4525DO
• Working current: 5mA
• Output: I2C (SCL & SDA)
• Pressure Ranges: 1 PSI (6.89kPa)
• Maximum Pressure: 20 PSI (137.9kPa)
• Operating Temperature: -40°C ~ 125°C
• Accuracy: ±0.25% SPAN
• Red LED: power indicator
• JST-GH sequence: 5V, SCL, SDA, GND
• Weight: 3.5g (sensor board)

Including
• 1x ASPD-4525 Sensor Board.
• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
• Pitot Tube.
• Clear silicon tubing 40cm

Wiring
• 5V to FC 4~5.5V
• SCL to FC I2C_SCL
• SDA to FC I2C_SDA
• G to FC GND
