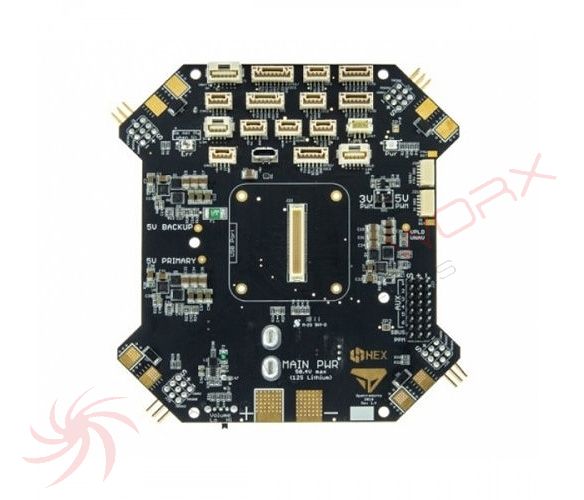

ProfiCNC/HEX Kore Multi-Rotor Carrier Board

FEATURES AT-A-GLANCE
Up to 12-cell Lithium battery (50.4V)
140A continuous current with 280A surges
Power and signal for ESCs conveniently located in corners
12V navigation light power available at each cornerBuilt-in power distribution
Built-in voltage and current sense
Redundant power supplies for flight critical components
Payload connectors with resettable fuses for 5V, 12V, and direct battery power
Good power and error indicator lights
Built-in buzzer with volume control
Connectors for every function of Pixhawk Cube
Easily accessible PWM voltage level selector (3.3V or 5V)
Resistant to ground bounce on PWM signal
Connector-compatible with standard ProfiCNC carrier board
Connector ports for debugging IO and FMU processors

STANDARD CABLES:
4-pin JST GH
6-pin JST GH
PAYLOAD POWER CABLES:
4-pin Clik-Mate 1.25mm (for 5V payload power)
5-pin Clik-Mate 1.25mm (for 12V payload power)
6-pin Clik-Mate 1.25mm (for battery payload power)

NOTE: Pixhawk 2.1 Cube NOT included.
