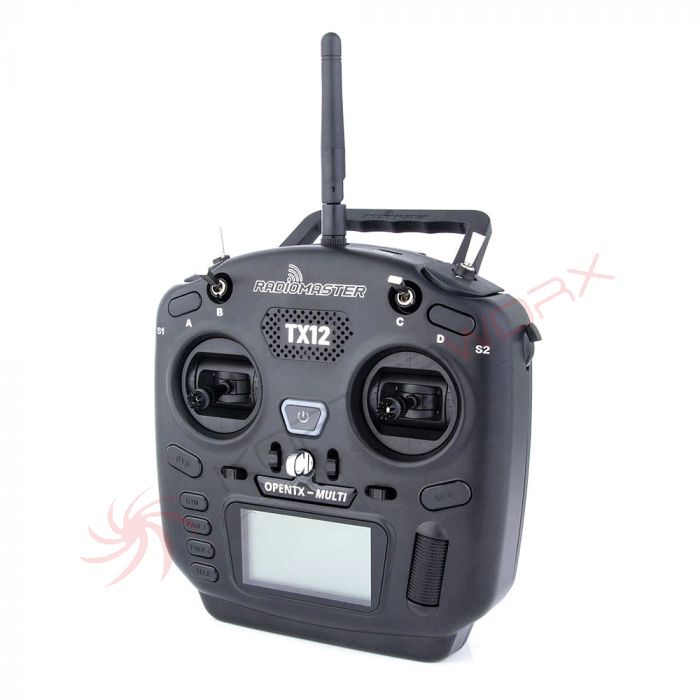

RadioMaster TX12 2.4G 16CH Multi-protocol RF System OpenTX Mode2 Transmitter
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip: Single-chip Multi-protocol(CC2500)
Supported Protocols: Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: 160mA@8.4V
Voltage Range:6.6-8.4v DC
Range: > 2km @ 20dbm (depending on receiver)
Radio Firmware: OpenTX(Transmitter)/ Multi-Module(RF module)
Channels: Up to 16 (depending on receiver)
Display:128*64 Monochrome LCD display
Gimbal: High precision potentiometer gimbals
External module:JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card* & OpenTX Companion PC software
*SD Card not included.
A special thanks and shout out to all of the the developers who without their hard work and dedication to Open Source software development, projects like ours wouldn't exist.
https://www.open-tx.org/
https://www.multi-module.org/
