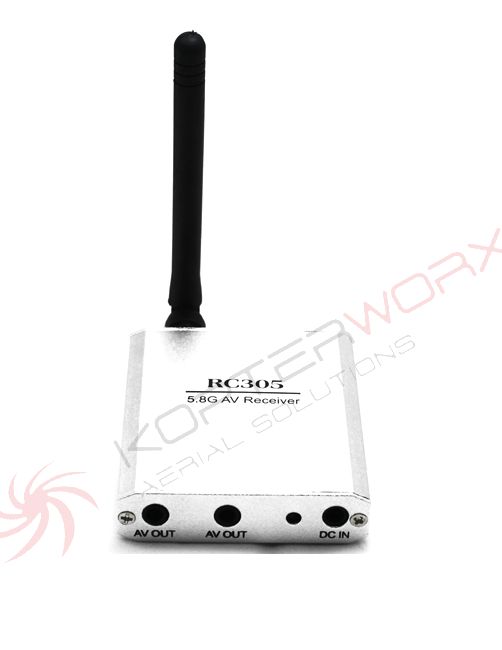

RX RC305 5,8 GHz
RC305 RX (5G8)
TBS Greenhorn/Rookie compatible
The RC305 is perhaps the most famous and most notorious 5.8GHz receiver. It gained popularity due to it's incredible price, but soon people realized it beat everything on the market in terms of range.
TBS put this puppy to the test and achieved 14.1km of range with a 27dbi grid antenna and a 25mW transmitter, a range that nobody has been able to beat or even get close to thus far.
TBS strives to adhere to local laws and regulations, for this reason this transmitter is set to Band A, which is ISM legal and therefore - with the appropriate transmitter - fully license free and legal to use. For compatibility with transmitters sold from other vendors please use the TBS Dominator Rx, which is compatible with all frequency bands.
Contents
- 5.8 GHz RC305 Receiver
- 5.8 GHz 3dbi whip antenna
- Stereo A/V 3.5mm jack cable
- Power lead JST
Supported Frequencies
| BOSCAM A | |
|---|---|
| Ch1: | 5865 MHz |
| Ch2: | 5845 MHz |
| Ch3: | 5825 MHz |
| Ch4: | 5805 MHz |
| Ch5: | 5785 MHz |
| Ch6: | 5765 MHz |
| Ch7: | 5745 MHz |
| Ch8: | 5725 MHz |
Band A: Team BlackSheep, RangeVideo, SpyHawk, FlyCamOne USA
