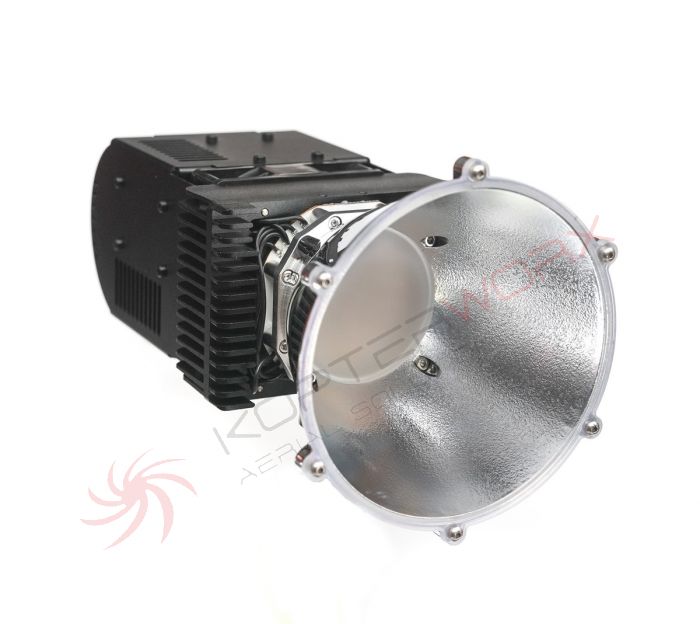

Stratus RGBW LED Module (Sbus, DMX)
The new RGBW Module combines 4 Lumiboost drivers to power one giant 4-colored LED COB array. Each color channel can output 120 watts of power. Hue, saturation, luminance and color temperature can be controlled via DMX, R/C SBUS, or manually.
The RGBW Module is a high power, full color light designed for use on drones. The integrated LED display allows users to set the hue, saturation, luminance, and color temperature manually, or select between DMX or R/C SBUS input signals. Multiple RGBW Modules can be daisy chained together for simultaneous control.
FEATURES:
Comparable in brightness to a 1500W Tungsten light
Includes low voltage protection for 4-6S Lithium batteries
Dimming control via DMX-512, SBUS (Futaba compatible), and Manual Encoder + Display
SPECIFICATIONS:
• 14,000 lumens per channel
• Color Temperature: 2000-9999K Adjustable
• 90CRI
• Flicker free with high speed cameras! Output heavily filtered by inductor
• Input: 14-27V DC
• Included power connector: XT90
• Noise: 10db-A fan
• Weight: 1090g
• Dimensions: 250*130*115mm (with parabolic reflector)
WHAT’S INCLUDED:
• RGBW Module (4X Lumiboosts, COB, heat sink, fan, pre assembled)
• SBUS signal wire
• 1/4-20” Mount
