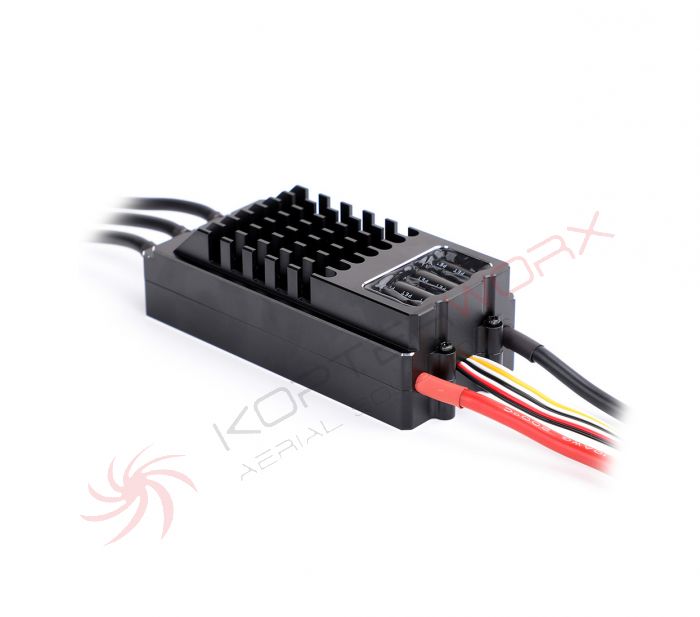

T-motor FLAME 180A 12S V2.0 Advanced ESC

T-MOTOR flame 180A HV esc support 6-12S lipo battery. With the layered structure, it is more efficient and has better heat dissipation.It is perfectly compatible with U12, U13, U15 brushless motors.

Main Features:
1. Special core program for multirotor controllers greatly improves throttle response.
2. Specially optimized software for excellent compatibility with disc-type motors.
3. All settings except the timing are preset, making usage simple, highly intelligent and adaptive.
4. Compatible with various flight-control systems and supports a signal frequency of up to 600Hz.
5. CNC aluminium alloy enclosure, IP55 PCB with nao technology, widely used in special domain such as UAV for agriculture, searching and etc.
6. Supporting 6-14S lipo

Specifications:
Item Brand: T-Motor
Item Model: Flame 180A HV
Size: 112.2 x 50.5 x 35.5mm
Weight: 279g
Support Voltage: 6-14S
BEC: No
Con. Current: 180A
Peak Current: 200A

Package Included:
T-MOTOR Flame 180A V2.0 HV Brushless ESC x 1
User Manual x 1
