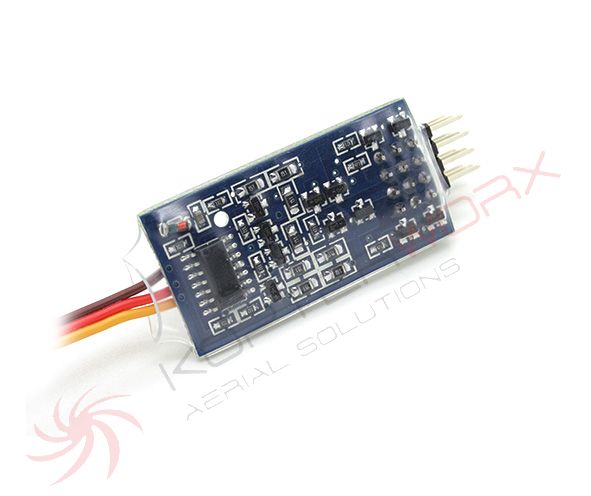

4ch Electronic On/Off Switch

This small lightweight 4ch switch is extremely handy for auxillary functions on all sorts of models. Plug the single lead into an auxillary switched function then switch your radio on, channel 1 on the electronic switch will then be active, cycle the auxillary switch once and channel 1 goes out and channel 2 comes on, cycle the switch once more and 2 goes out and channel 3 comes and so on until it comes back to channel 1. When the radio is switched off and then switched back on the unit will default to channel 1 each time. This unit is great for switching lights on and off and other low current applications.

Please note: For this switch to work correctly you will need to set the related channel travel to +- 100%.

Specs:
Input Voltage: 4.8~7.4v
Output Voltage: 4.8~7.4v
Maximum Current: 2amps
Length: 40mm
Width: 20mm
Height: 12mm
Weight: 7g
Input Cable: 21cm (JR type plug)
