UP1200+ 8 Ch 2-6S Battery UAV Charger With LCD
The most Advanced Charger on the Market
Ultra Power UP1200+ 25A UAV/Agricultural Drone Fast Balance Charger/Discharger With Display Screen For 8 Channel 2-6S LiPo LiHV Battery
UP1200+ have a color display screen to clearly show the charging status, the user can well know the charging data, like charging current, battery voltage, battery capacity, battery level, charging time etc.. Also, In addition to connecting 8 batteries, you can also connect a 2S/3S battery to the radio battery connection port.
Specification
| Product name | UAV Charger UP1200+ Eight Channels with display screen |
| Input voltage | AC 220V |
| Charge power | 1200W(2x600W) |
| Discharge Power | 280W (35Wx8) |
| Charge current range | 5A/10A/15A/20A/25A |
| Battery type | LiPo/LiHV |
| Battery cell count | 2 – 6S |
| Working mode | Charge/Fast Charge/Storage |
| Balance current | 1.5A/cell |
| Net Weight | 4.61KG |
| Dimensions | 270X190X160 mm |
Special Features
1.Three working mode: Charge/Fast Charge/Storage mode
2. Support charging 8 pcs of 2-6S LiPo/LiHV batteries and built-in charging nanny, 4 channels per side.
3. Each side works independently, the charger can automatically turn to the next battery pack once fully charged.
4. Support to charge/discharge with 8 battery packs simultaneously under storage mode.
5. With independent radio battery connection port, support to charge 2S/3S radio battery. (Only one radio battery can be charged one time).
6. Memorizing last charging current.
7. Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature protection.

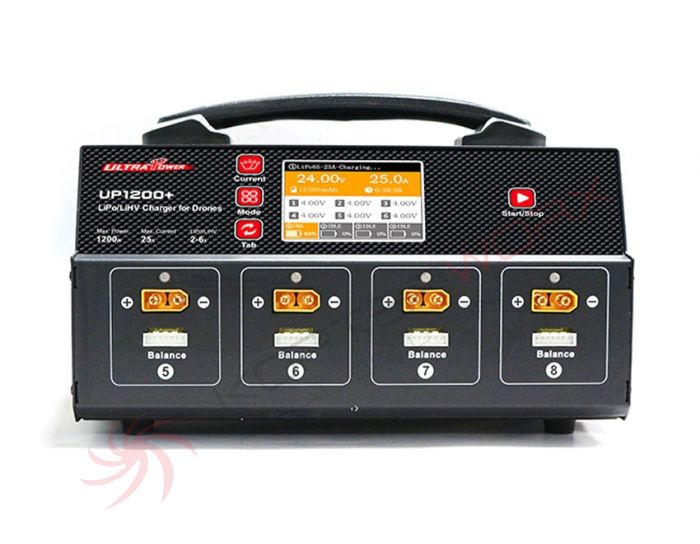

Product Show
