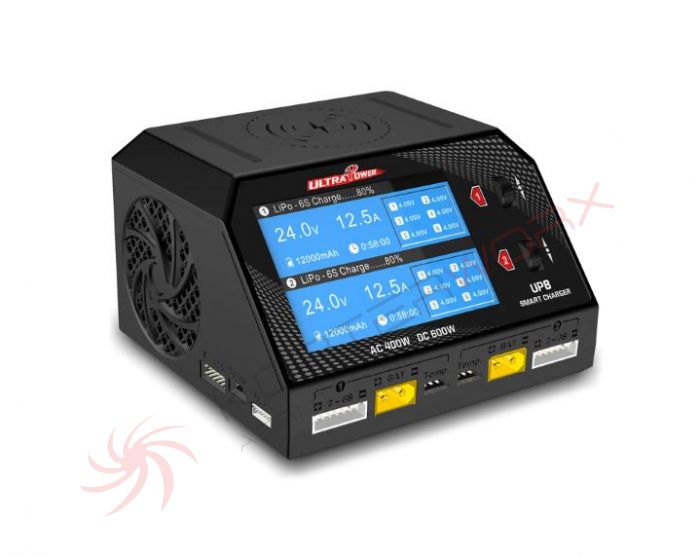

UP8 600W, 16A Smart Dual Channel AC/DC Charger
Specification:
Input voltage:AC 100-240V, DC 9.0-30.0V
Output voltage: 0.1-30V
Charge power: AC 400W/ DC 600W (Support power distribution)
Wireless charge power: Max. 10W
Discharge power: CH1: 8W/200W(External
discharge mode) CH2: 8W
Charge current: 0.1-16.0A x 2
Discharge current: CH1: 0.1-3.0A/0.1-15.0A(External discharge mode) CH2: 0.1-3.0A
LiPo/LiHV/LiIon/LiFe cell count: 1-6 cells
NiCd/NiMH battery cell count: 1-16 cells
Pb battery voltage: 2V-24V (1-12 cells)
Balance current: Max. 1000mA/cell
LCD Screen type: 3.5〃480×320 LCD
Weight: 780g
Dimensions: 125x119x76mm
Special Features:
1. Two independent shuttle key control the charger.
2. Wireless charging port, support to charge at Max.10W.
3. Support testing the servo and motor.
4. Support external discharging at Max.200W,15A.
5. Support power distribution both in AC and DC mode.
6. With a USB port: 5V/2.1A.
Packaging included:
1X ULTRA POWER UP8 Charger
