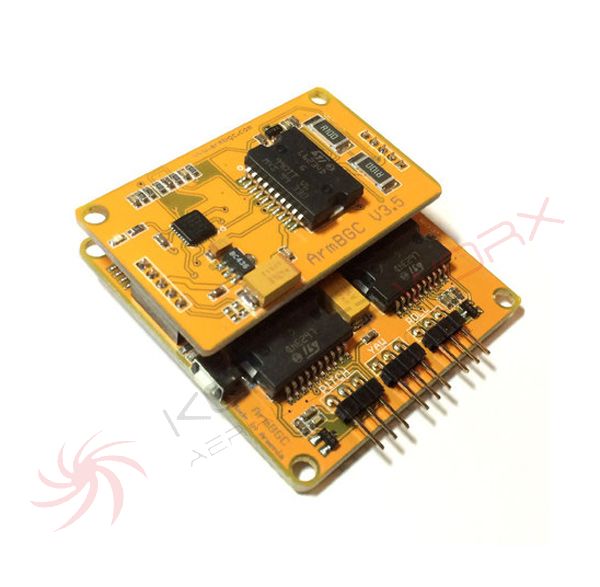

V3.5 AlexMos Brushless Gimbal Controller 3 axis

V3.5 AlexMos Simple Brushless Gimbal Controller

This board set is fully assembled and ready to use. Board have latest firmware designed by Alex Moskalenko. You can upload new software any time by onboard USB

what's NEW:
• New IMU  Silicone Wire 50sm
• New ArmIMU V2 yellow (sensor)
• New buzzer connector
• New Voltage sensor
• Added 22uf capacitor

Included:
• ArmIMU V2.0
• ArmAXi V3.5
• Power wire
• Rc wire
• sensor wire

Software updates

2.4b2 coming soon

2.3b4 NEW

Firmware: SimpleBGC_2_3b4.enc.hex (84Kb 7.11.2013)

GUI: SimpleBGC_GUI_2_3b4.zip (5Mb 7.11.2013)
User manual: SimpleBGC_manual_2_3_eng.pdf (407Kb 7.11.2013)

2.2b2

Firmware: SimpleBGC_2_2b2.enc.hex (85Kb 13.08.2013)

GUI: SimpleBGC_GUI_2_2b2.zip (5Mb 13.08.2013)
User manual: SimpleBGC_manual_2_2_eng.pdf (360Kb 13.08.2013)

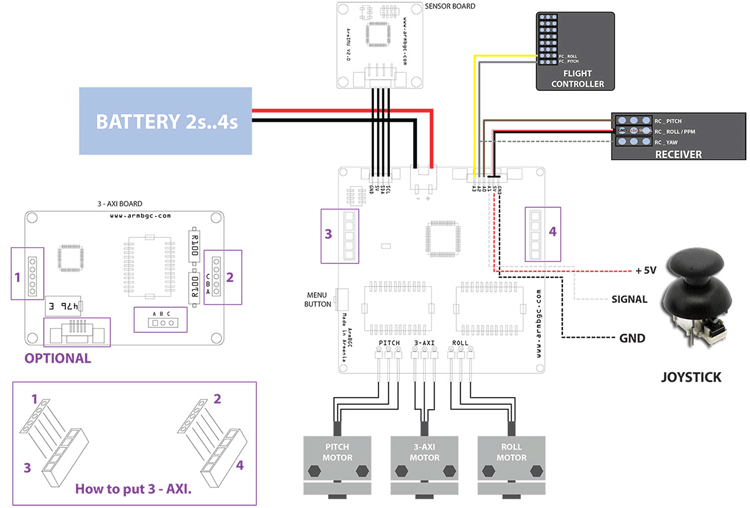

Connection Diagramm:
• New camera control mode: "Follow Pitch" mode (video tutorial)
• New tab in the GUI to configure this mode
• Smooth switching between modes on-the-fly
• User manual for v.2.2

Weight:
90.00 Grams
